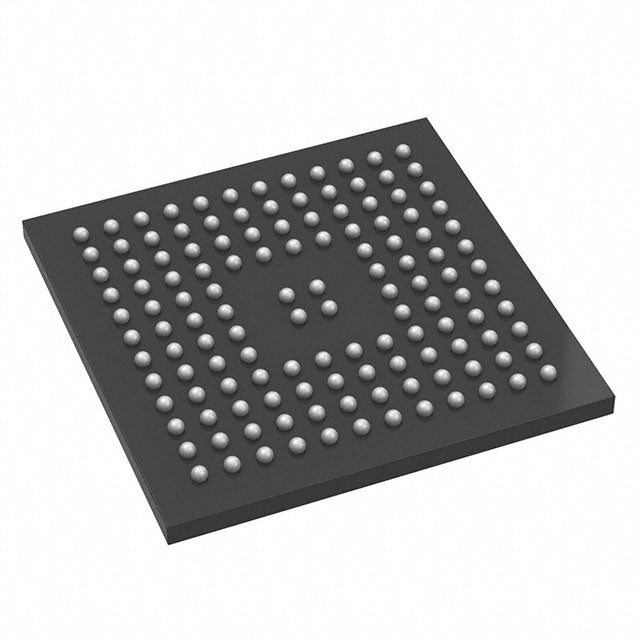

STMicroelectronics STM32U585QII6QTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $24.81 | $24.81 |
| 15+ | $5.70 | $85.50 |
| 25+ | $5.58 | $139.50 |
| 50+ | $5.27 | $263.50 |
| 100+ | $4.65 | $465.00 |
| N+ | $0.93 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 106 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 784K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 132-UFBGA (7x7) |
| Package / Case | 132-UFBGA |
| ROHS |  |
The STM32U585QII6QTR is a powerful microcontroller from STMicroelectronics, featuring an ARM Cortex-M33 core at 160MHz. It provides 2MB of flash and 784KB of RAM, enabling complex applications in a compact 132-UFBGA package. Designed for industrial temperature ranges (-40°C to 85°C) and a supply voltage of 1.71V to 3.6V, it is well-suited for energy-sensitive and high-reliability systems.
- Efficient Processing: Cortex-M33 with DSP instructions accelerates signal processing tasks.
- Ample Storage: 2MB flash and 784KB RAM reduce the need for external memory components.
- Flexible Power: Supports 1.71V to 3.6V, allowing direct battery connection.
- Integrated Peripherals: LCD, PWM, and DMA reduce BOM cost and board space.
Advanced IoT Gateways
Combine 160MHz processing with 2MB flash to run embedded Linux or RTOS-based gateways with multiple protocol stacks.
High-End Appliance Control
Motor Control PWM and DMA enable smooth, efficient control of compressors and fans in refrigerators and HVAC units.
Secure Access Systems
Leverage the Cortex-M33 TrustZone and large memory for biometric authentication and secure key storage.
Industrial HMI Panels
Drive graphical LCDs and handle touch input with the high-speed core and integrated LCD controller.
Energy Harvesting Sensors
Operate at 1.71V to maximize energy capture from solar or vibration harvesters in wireless sensor nodes.
Robotics Controllers
Use the rich timer set and PWM outputs for multi-axis servo control with precise timing.
- Q: What is the core processor?
- A: ARM Cortex-M33 running at up to 160MHz.
- Q: What is the supply voltage range?
- A: 1.71V to 3.6V, suitable for low-power applications.
- Q: How much program memory is available?
- A: 2MB of flash memory for large application code.
- Q: What is the package type?
- A: 132-UFBGA, a fine-pitch ball grid array for compact designs.
- Q: Does it include a watchdog timer?
- A: Yes, it has a WDT for system reliability.
