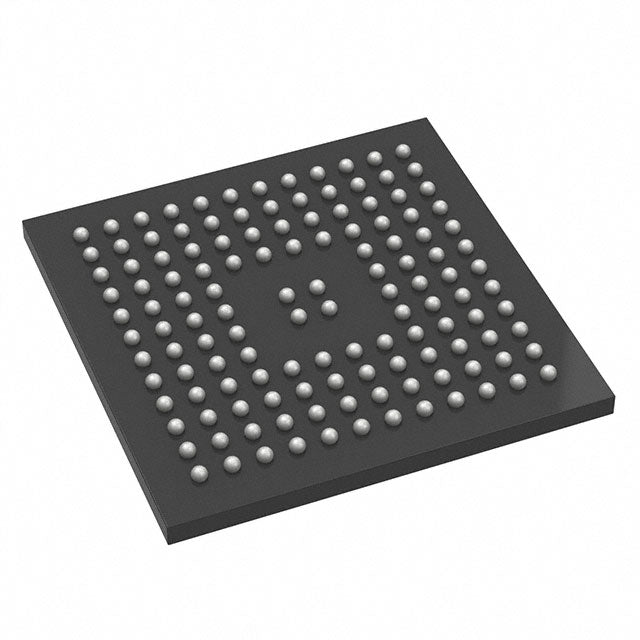

STMicroelectronics STM32U595QII6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $35.63 | $35.63 |
| 15+ | $8.20 | $123.00 |
| 25+ | $8.02 | $200.50 |
| 50+ | $7.57 | $378.50 |
| 100+ | $6.68 | $668.00 |
| N+ | $1.34 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 110 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2.5M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 132-UFBGA (7x7) |
| Package / Case | 132-UFBGA |
| ROHS |  |
The STM32U595QII6 from STMicroelectronics is an ultra-low-power MCU featuring an ARM Cortex-M33 core at 160MHz. It provides 2MB flash and 2.5MB SRAM, with an integrated LCD controller. Operating from 1.71V to 3.6V, it is ideal for battery-powered and display-centric applications.
- Ultra-low power: Optimized for battery life with multiple low-power modes.
- Large memory: 2.5MB SRAM enables complex applications and graphics.
- Integrated LCD: Reduces BOM cost and PCB area.
- TrustZone security: Hardware isolation for secure code execution.
Smart Wearables
Ultra-low power consumption with 160MHz performance enables advanced health monitoring and always-on display.
Industrial HMI Panels
Integrated LCD controller and 2.5MB RAM support rich graphical interfaces without external memory.
Portable Medical Devices
Low voltage operation (1.71V) extends battery life while Cortex-M33 TrustZone ensures data security.
Smart Home Hubs
DMA and PWM peripherals manage multiple sensors and actuators efficiently.
Energy Harvesting Systems
Wide voltage range and low-power modes allow operation from solar or thermal sources.
Motor Control with GUI
Motor control PWM combined with LCD output for real-time parameter visualization.
- Q: What is the core and speed?
- A: ARM Cortex-M33 at 160MHz with DSP and FPU.
- Q: How much memory is available?
- A: 2MB flash and 2.5MB SRAM for large applications.
- Q: What is the voltage range?
- A: 1.71V to 3.6V, supporting battery-powered designs.
- Q: Does it have a display controller?
- A: Yes, integrated LCD controller for direct glass or TFT panels.
- Q: What package is used?
- A: 132-UFBGA, compact for space-constrained devices.
