STMicroelectronics STM32U595QII6Q
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.41 | $16.41 |
| 15+ | $10.78 | $161.70 |
| 25+ | $10.55 | $263.75 |
| 50+ | $9.96 | $498.00 |
| 100+ | $8.79 | $879.00 |
| N+ | $1.76 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 106 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2.5M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

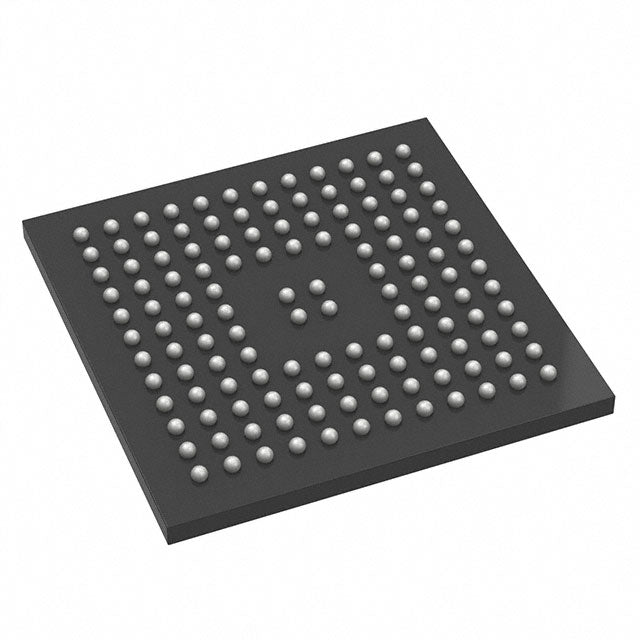

| Supplier Device Package | 132-UFBGA (7x7) |
| Package / Case | 132-UFBGA |
| ROHS |  |
The STM32U595QII6Q from STMicroelectronics is an ultra-low-power 32-bit MCU based on the ARM Cortex-M33 core at 160MHz. It offers a massive 2.5MB of RAM and 2MB of flash memory, enabling complex applications. The 132-UFBGA package and 1.71V-3.6V supply range support compact, battery-powered designs. With integrated LCD, motor control PWM, and robust safety features, this MCU is designed for advanced IoT, industrial, and medical applications.
- Ultra-Low Power: 1.71V operation and low-power modes extend battery life.
- Massive RAM: 2.5MB SRAM supports complex algorithms and large data buffers.
- Integrated LCD: Direct display driving reduces external components and BOM cost.
- Advanced Security: Cortex-M33 TrustZone ensures secure code execution.
Smart Wearable Devices
The low voltage (1.71V) and integrated LCD controller make it ideal for smartwatches and fitness trackers.
Industrial HMI Panels
With 2.5MB RAM and a 160MHz Cortex-M33, it can handle graphical user interfaces and touch processing.
IoT Edge Nodes
Its rich peripheral set and low power modes enable secure cloud connectivity in smart building sensors.
Medical Monitoring Equipment
The large RAM supports complex signal processing for portable ECG and glucose monitors.
Motor Control Systems
Motor control PWM and DMA facilitate efficient field-oriented control in robotics and drones.
Secure Access Systems
The Cortex-M33 with TrustZone provides hardware isolation for biometric authentication devices.
- Q: What core does the STM32U595QII6Q use?
- A: It is based on the ARM Cortex-M33 core, running at 160MHz.
- Q: How much RAM is available?
- A: It features 2.5MB of RAM, which is exceptionally large for an MCU.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V, supporting low-power battery designs.
- Q: Does it have an LCD controller?
- A: Yes, it includes an integrated LCD controller for direct display driving.
