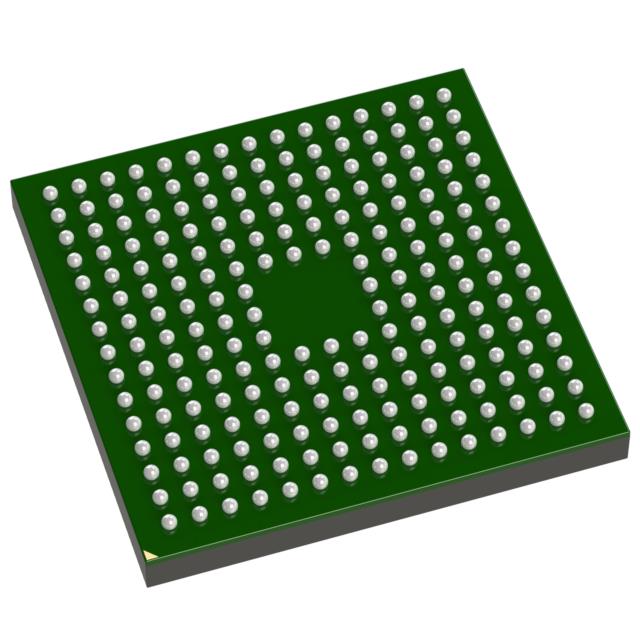

STMicroelectronics STM32U599NIH6Q
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $42.64 | $42.64 |
| 15+ | $9.81 | $147.15 |
| 25+ | $9.59 | $239.75 |
| 50+ | $9.06 | $453.00 |
| 100+ | $8.00 | $800.00 |
| N+ | $1.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 156 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2.5M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 216-TFBGA (13x13) |
| Package / Case | 216-TFBGA |
| ROHS |  |
The STMicroelectronics STM32U599NIH6Q is an ultra-low-power ARM Cortex-M33 microcontroller with 160MHz performance, 2MB flash, and 2.5MB RAM. It integrates an LCD controller, motor control PWM, and advanced security features in a 216-TFBGA package. Operating from 1.71V to 3.6V, it is designed for next-generation smart, connected devices.
- Ultra-Low Power with 1.71V Operation: Extends battery life in portable and wearable devices.
- Large 2.5MB RAM: Supports complex graphics buffers and AI models without external memory.
- Integrated LCD Controller: Eliminates external display driver ICs, reducing cost and PCB area.
- 160MHz Cortex-M33 with DSP: Provides high compute density for signal processing and control.
Smart Wearables with Display
The integrated LCD controller and 2.5MB RAM enable rich UI graphics on wrist-worn devices without external display drivers, reducing power and size.
Industrial HMI Panels
160MHz Cortex-M33 with 2MB flash handles complex touch interfaces and communication stacks (EtherCAT, Modbus) for factory automation panels.
AI-Enabled Sensor Hubs
The large RAM and DSP instructions support on-device neural network inference for vibration or acoustic anomaly detection in predictive maintenance.
Portable Medical Instruments
Low 1.71V operation and DMA peripherals enable battery-powered patient monitors with continuous data logging and waveform display.
Smart Home Controllers
Motor control PWM and multiple communication interfaces make it a central hub for managing HVAC, lighting, and security systems with local intelligence.
High-End Audio Processing
With 2.5MB RAM and fast core, it can run advanced audio algorithms (noise cancellation, beamforming) for smart speakers and hearing aids.
- Q: What core does the STM32U599NIH6Q use?
- A: It is based on the ARM Cortex-M33 core running at up to 160MHz.
- Q: How much flash and RAM does it have?
- A: It offers 2MB flash and 2.5MB RAM, ideal for graphics and AI workloads.
- Q: Does it support LCD driving?
- A: Yes, it includes an integrated LCD controller for direct glass display driving.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V, supporting battery-powered designs.
- Q: What package is available?
- A: It comes in a 216-TFBGA package, suitable for compact PCB layouts.
