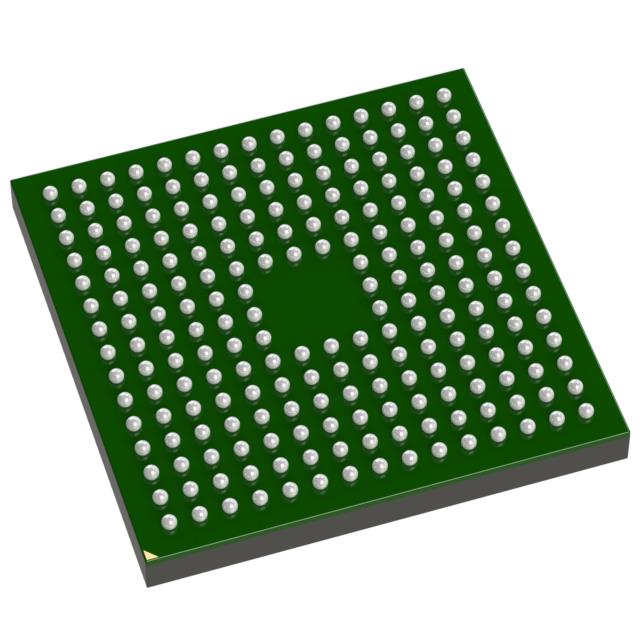

STMicroelectronics STM32U5A9NJH6QTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $44.91 | $44.91 |
| 15+ | $10.33 | $154.95 |
| 25+ | $10.11 | $252.75 |
| 50+ | $9.55 | $477.50 |
| 100+ | $8.42 | $842.00 |
| N+ | $1.68 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, EBI/EMI, FIFO, I2C, IrDA, LINbus, MMC/SD, SPI, UART/USART/USB |
| Peripherals | Brown-out Detect/Reset, Crypto - AES, DMA, LCD, PWM, SHA, Temp Sensor, TRNG, WDT |
| Number of I/O | 156 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2.5M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 216-TFBGA (13x13) |
| Package / Case | 216-TFBGA |
| ROHS |  |
The STMicroelectronics STM32U5A9NJH6QTR is a high-performance, ultra-low-power microcontroller built on the ARM Cortex-M33 core. Running at 160MHz with 4MB flash and 2.5MB RAM, it offers exceptional memory and processing capabilities. Its advanced security suite includes AES, SHA, and TRNG, making it ideal for secure IoT and medical applications. The 216-TFBGA package provides a compact footprint for space-constrained designs.
- Ultra-Low Power: The Cortex-M33 with advanced power management extends battery life in portable devices.
- Large Memory: 4MB flash and 2.5MB RAM support complex applications and over-the-air updates.
- Hardware Security: AES, SHA, and TRNG provide robust protection against cyber threats.
- High Performance: 160MHz clock speed enables real-time processing and edge AI workloads.
High-End Wearable Health Monitors
The ultra-low-power Cortex-M33 with 4MB flash enables continuous monitoring of vital signs with complex algorithms, while the crypto engine secures patient data.
Smart Home Hubs with Edge AI
With 160MHz processing and 2.5MB RAM, it can run lightweight neural networks for voice and gesture recognition locally, reducing cloud dependency.
Industrial IoT Gateways
The extensive security features (AES, SHA, TRNG) ensure secure communication and firmware updates, making it ideal for industrial data concentrators.
Medical Diagnostic Devices
High memory capacity and LCD controller support complex user interfaces and data logging in portable diagnostic equipment.
Secure Payment Terminals
The integrated crypto hardware and tamper detection capabilities meet PCI-PTS requirements for point-of-sale terminals.
Advanced Metering Infrastructure
Its low power consumption and robust security make it suitable for smart meters that require long battery life and tamper-proof operation.
- Q: What is the core of the STM32U5A9NJH6QTR?
- A: It uses an ARM® Cortex®-M33 core at 160MHz.
- Q: How much flash and RAM does it have?
- A: It has 4MB flash and 2.5MB RAM.
- Q: What security features are included?
- A: It includes AES, SHA, TRNG, and crypto acceleration.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: What package is it available in?
- A: It comes in a 216-TFBGA package.
