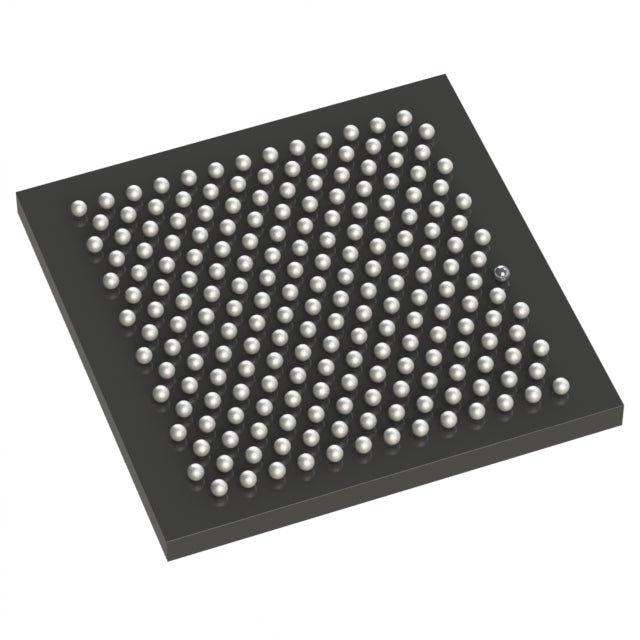

STMicroelectronics STM32U5F9BJY6QTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $42.70 | $42.70 |
| 15+ | $9.82 | $147.30 |
| 25+ | $9.60 | $240.00 |
| 50+ | $9.07 | $453.50 |
| 100+ | $8.00 | $800.00 |
| N+ | $1.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, CapSense, Crypto - AES, DMA, LCD, PWM, SHA, Temp Sensor, TRNG, WDT |
| Number of I/O | 145 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 3M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-WLCSP (5.8x5.6) |
| Package / Case | 208-UFBGA, WLCSP |
| ROHS |  |
The STM32U5F9BJY6QTR is a secure, ultra-low-power ARM Cortex-M33 microcontroller from STMicroelectronics, running at 160 MHz. It features 4MB flash and 3MB SRAM, along with advanced security peripherals like AES, SHA, TRNG, and CapSense touch sensing. Available in a 208-UFBGA or WLCSP package, it operates from 1.71V to 3.6V and -40°C to 85°C, making it ideal for high-end IoT, wearable, and secure embedded applications.
- Hardware Security: TrustZone, AES, SHA, and TRNG provide robust protection against cyber threats.
- Massive Memory: 4MB flash and 3MB SRAM support complex applications and large data buffers.
- Ultra-Low Power: Optimized for battery-powered devices with multiple low-power modes.
- Integrated Touch: CapSense eliminates external touch controller ICs, simplifying design.
Secure IoT Edge Nodes
The Cortex-M33 with TrustZone, AES, and SHA provides hardware-rooted security for firmware authentication and encrypted communication in smart sensors.
Wearable Health Monitors
Ultra-low power consumption combined with 3MB SRAM enables continuous sensor data logging and on-device AI inference for heart-rate or ECG analysis.
Smart Displays with Touch
CapSense and LCD controller support sleek, touch-enabled user interfaces for home appliances or industrial control panels.
Cryptocurrency Hardware Wallets
TRNG and cryptographic accelerators ensure secure key generation and transaction signing, meeting high-security standards.
Battery-Powered Data Loggers
Wide voltage range (1.71V-3.6V) and low-power modes allow years of operation on a single coin cell while storing data in 4MB flash.
Predictive Maintenance Sensors
160MHz processing and DMA handle real-time vibration analysis, while Temp Sensor monitors environmental conditions for early fault detection.
- Q: What core does the STM32U5F9BJY6QTR use?
- A: It uses the ARM Cortex-M33 with TrustZone, running at up to 160 MHz.
- Q: Does it have hardware security features?
- A: Yes, it includes AES, SHA, TRNG, and cryptographic acceleration for secure applications.
- Q: How much flash and RAM are available?
- A: It offers 4MB flash and 3MB SRAM, among the largest in its class.
- Q: What is the package type?
- A: It comes in a 208-UFBGA or WLCSP package, operating from -40°C to 85°C.
- Q: Does it support touch sensing?
- A: Yes, it integrates CapSense technology for capacitive touch interfaces.
