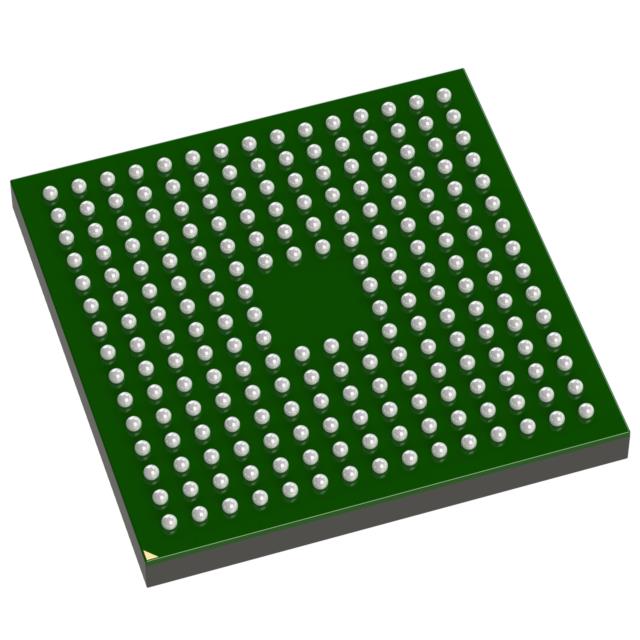

STMicroelectronics STM32U5G9NJH6Q
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.17 | $27.17 |
| 15+ | $17.86 | $267.90 |
| 25+ | $17.47 | $436.75 |
| 50+ | $16.50 | $825.00 |
| 100+ | $14.56 | $1,456.00 |
| N+ | $2.91 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, CapSense, Crypto - AES, DMA, LCD, PWM, SHA, Temp Sensor, TRNG, WDT |
| Number of I/O | 156 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 3M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 216-TFBGA (13x13) |
| Package / Case | 216-TFBGA |
| ROHS |  |
The STM32U5G9NJH6Q is an advanced microcontroller from STMicroelectronics, featuring a 160MHz ARM Cortex-M33 core with TrustZone. It offers an impressive 4MB of flash and 3MB of RAM, enabling complex and secure applications. The device includes a rich set of security features like AES, SHA, and TRNG. Its 216-pin TFBGA package is designed for high-density integration in premium devices.
- Advanced Security: TrustZone, AES, SHA, and TRNG provide a secure execution environment.
- Massive Memory: 4MB flash and 3MB RAM support large applications and data buffers.
- Rich Peripherals: Includes CapSense, LCD controller, and multiple communication interfaces.
- High Efficiency: The Cortex-M33 core offers a good balance of performance and power consumption.
Secure IoT Gateways
The Cortex-M33 with TrustZone and cryptographic accelerators (AES, SHA) provides a secure foundation for edge computing and cloud connectivity.
Wearable Health Monitors
With CapSense for touch interfaces and low-power modes, it is ideal for battery-powered health tracking devices.
Smart Home Hubs
Manage multiple wireless protocols and control LCD displays with the large memory and rich peripheral set.
Industrial Security Systems
Implement secure boot and encrypted data logging with the integrated security features and TRNG.
High-End Consumer Electronics
Drive graphical user interfaces on LCD panels while handling complex audio processing with the 160MHz core.
Data Acquisition Systems
The large RAM (3MB) allows for extensive data buffering in high-speed logging applications.
- Q: What is the core and speed of the STM32U5G9NJH6Q?
- A: It uses an ARM Cortex-M33 core running at 160MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: How much flash and RAM does it have?
- A: It has 4MB of flash and 3MB of RAM.
- Q: What security features are included?
- A: It includes AES, SHA, TRNG, and cryptographic acceleration.
- Q: What package is available?
- A: It comes in a 216-pin TFBGA package.
