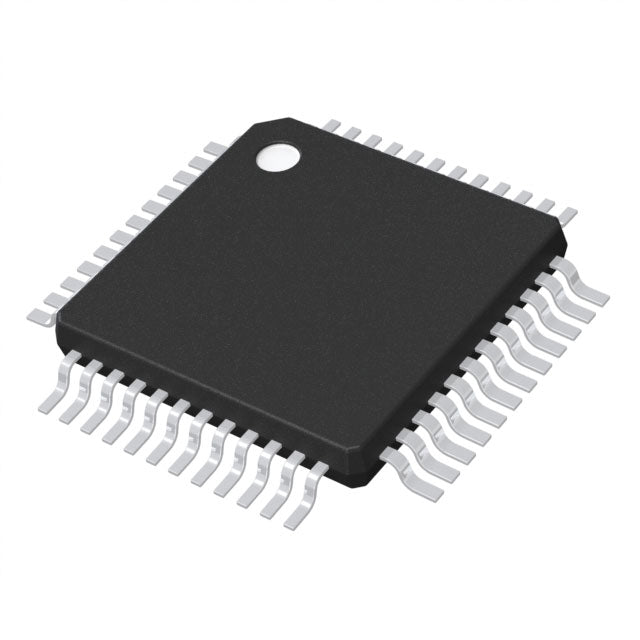

STMicroelectronics STM8AF5288TCY
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.04 | $5.04 |
| 15+ | $3.31 | $49.65 |
| 25+ | $3.24 | $81.00 |
| 50+ | $3.06 | $153.00 |
| 100+ | $2.70 | $270.00 |
| N+ | $0.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8A |
| Packaging | Tray | |
| Core Processor | STM8A |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | CANbus, I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 38 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 10x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LQFP (7x7) |
| Package / Case | 48-LQFP |
The STMicroelectronics STM8AF5288TCY is a robust 8-bit microcontroller designed for automotive and industrial applications. Featuring the STM8A core at 24MHz, it delivers reliable performance with 64KB flash and 6KB RAM. Its supply voltage range of 3V to 5.5V simplifies power supply design, while the extended temperature range (-40°C to 125°C) ensures operation in extreme conditions. The 48-LQFP package offers a balance between pin count and footprint, making it suitable for a wide range of control applications.
- Automotive-Grade Reliability: Operates up to 125°C and includes brown-out detection, ensuring dependable performance in vehicles.
- Wide Voltage Range: 3V to 5.5V allows direct connection to automotive batteries and industrial power supplies.
- High Flash Capacity: 64KB flash enables complex firmware and over-the-air updates.
- Integrated PWM and WDT: Reduces external components, lowering system cost and improving reliability.
- Proven STM8A Core: Efficient 8-bit architecture with extensive ecosystem support.
Automotive Body Control Modules
The wide voltage range (3V-5.5V) and 125°C operating temperature make it perfect for body control modules, handling window lifts, door locks, and lighting.
Industrial Motor Control
With PWM and WDT, it can drive industrial motors with precise speed and torque control, ensuring reliable operation in harsh factory environments.
Power Management Systems
Its robust brown-out detection and reset features ensure stable operation in power supply units, monitoring and controlling voltage regulation.
HVAC Controllers
The 64KB flash allows for complex control algorithms for heating, ventilation, and air conditioning systems, with the 48-LQFP package fitting standard PCBs.
Automotive Lighting Systems
Supports LED and HID lighting control with PWM, providing dimming and diagnostic functions, while the high temperature rating handles engine bay heat.
Smart Sensors for Industrial IoT
Combines analog and digital I/O to interface with sensors, processing data locally and communicating via external transceivers.
