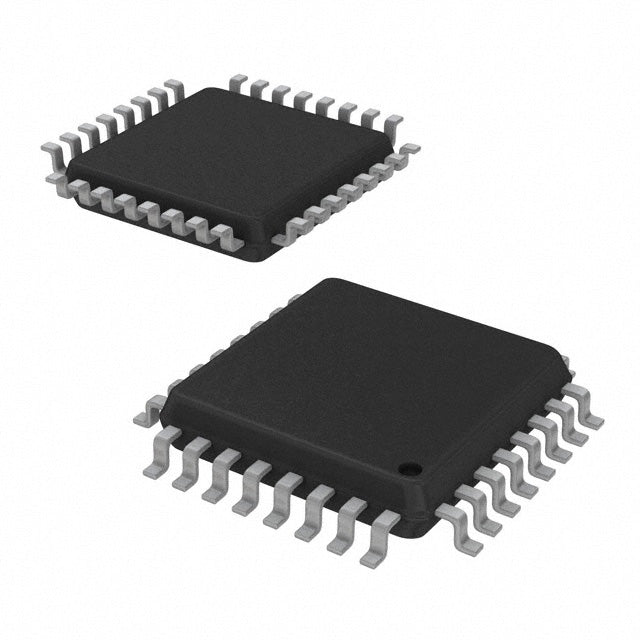

STMicroelectronics STM8AF6246TASSSX
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.69 | $6.69 |
| 15+ | $1.54 | $23.10 |
| 25+ | $1.50 | $37.50 |
| 50+ | $1.42 | $71.00 |
| 100+ | $1.25 | $125.00 |
| N+ | $0.25 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8A |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | STM8A |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 7x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 32-LQFP |
| ROHS |  |
The STMicroelectronics STM8AF6246TASSSX is an 8-bit microcontroller based on the STM8A core, running at 16MHz. It provides 16KB flash and 2K RAM, with a supply range of 3V to 5.5V. Features include Brown-out Detect/Reset, POR, PWM, and WDT. Housed in a 32-LQFP package, it is designed for automotive and industrial control applications.
- Automotive-Grade Reliability: Designed for AEC-Q100, ensuring robust operation in vehicles.
- Integrated Safety Features: Brown-out Reset and WDT prevent system failures.
- Compact 32-LQFP: Saves PCB space while providing sufficient I/O.
- Wide Voltage Range: 3V to 5.5V simplifies power supply design.
Automotive Body Control Modules
With 16MHz speed and 5V operation, it manages window lifts, door locks, and mirror controls in vehicles.
Industrial Sensor Nodes
The built-in Brown-out Reset and WDT ensure reliable data acquisition from temperature or pressure sensors in factories.
Motor Control for Pumps
Its PWM module drives small DC motors in water pumps, with POR protecting against power interruptions.
Lighting Control Systems
It handles DALI or DMX protocols for commercial LED lighting, using its 16KB flash for protocol stacks.
Safety Interlock Systems
The -40°C to 85°C range and robust peripherals make it suitable for emergency stop logic in machinery.
Smart Actuators
It processes position feedback and drives stepper motors in HVAC damper systems, with low power consumption.
- Q: What is the core architecture of the STM8AF6246TASSSX?
- A: It uses the STM8A 8-bit core running at 16MHz.
- Q: What is the supply voltage range?
- A: It operates from 3V to 5.5V.
- Q: How much flash memory is available?
- A: It has 16KB (16K x 8) of program memory.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 85°C (TA).
- Q: What package is it available in?
- A: It comes in a 32-LQFP package.
