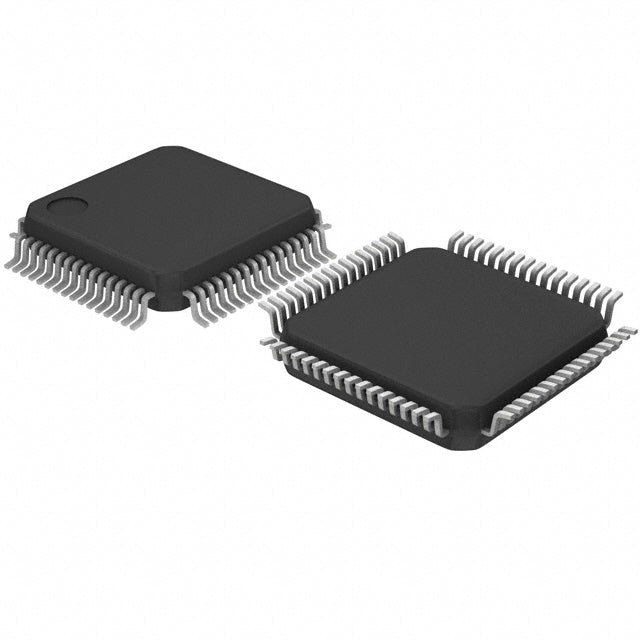

STMicroelectronics STM8AF6269TAY
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.37 | $4.37 |
| 15+ | $2.87 | $43.05 |
| 25+ | $2.81 | $70.25 |
| 50+ | $2.65 | $132.50 |
| 100+ | $2.34 | $234.00 |
| N+ | $0.47 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8A |
| Packaging | Tray | |
| Core Processor | STM8A |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 52 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 64-LQFP |
| ROHS |  |
The STM8AF6269TAY from STMicroelectronics is an 8-bit microcontroller based on the STM8A core, specifically designed for automotive and industrial applications. It operates at up to 24MHz with a supply voltage range of 3V to 5.5V, ensuring compatibility with standard automotive power systems. The device features 32KB of flash and 6KB of RAM, along with peripherals like PWM, brown-out reset, and watchdog timer. Packaged in a 64-pin LQFP, it offers ample I/O for complex control systems. Its operating temperature range is -40°C to 85°C.
