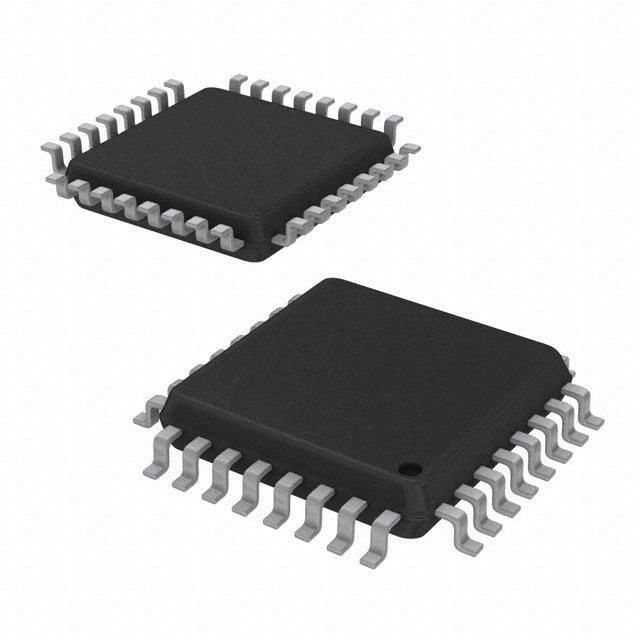

STMicroelectronics STM8AF6286TAY
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.32 | $8.32 |
| 15+ | $1.91 | $28.65 |
| 25+ | $1.87 | $46.75 |
| 50+ | $1.77 | $88.50 |
| 100+ | $1.56 | $156.00 |
| N+ | $0.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8A |
| Packaging | Tray | NULL |
| Core Processor | STM8A |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 7x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 32-LQFP |
| ROHS |  |
The STMicroelectronics STM8AF6286TAY is a high-performance 8-bit microcontroller featuring the STM8A core at 24 MHz. It provides 64 KB of flash and 6 KB of RAM, with a supply voltage range of 3V to 5.5V. The device includes brown-out detection, POR, PWM, and WDT, and operates from -40°C to 85°C. Housed in a compact 32-LQFP package, it is designed for automotive and industrial control applications.
- High-Speed 8-bit Core: 24MHz clock speed delivers fast processing for real-time control tasks.
- Ample Memory: 64KB flash and 6KB RAM support complex applications and data logging.
- Wide Voltage Range: 3V-5.5V operation ensures compatibility with standard automotive and industrial supplies.
- Compact 32-LQFP: Saves PCB space while providing sufficient I/O for control applications.
Automotive Sensors
The 24MHz core and 64KB flash allow for complex signal processing in automotive pressure and position sensors.
Industrial Drives
PWM outputs and a wide voltage range make it suitable for variable frequency drives in industrial motors.
Building Automation
Its robust feature set supports HVAC controllers, lighting systems, and access control panels.
Medical Monitoring
The low-power STM8A core and 6KB RAM enable portable patient monitoring devices with long battery life.
Consumer Robotics
With 24MHz speed and PWM, it can control small servo motors and sensor arrays in hobby robots.
Smart Agriculture
Its reliability and temperature range make it ideal for soil sensors and irrigation controllers in outdoor environments.
- Q: What is the maximum core frequency?
- A: The STM8A core operates at up to 24 MHz.
- Q: How much flash memory does it have?
- A: It includes 64 KB of program memory (64K x 8).
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 85°C (TA).
- Q: What is the supply voltage range?
- A: It operates from 3V to 5.5V.
- Q: What package is available?
- A: It comes in a 32-LQFP package.
