STMicroelectronics STM8L001J3M3TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.26 | $1.26 |
| 15+ | $0.83 | $12.45 |
| 25+ | $0.81 | $20.25 |
| 50+ | $0.77 | $38.50 |
| 100+ | $0.68 | $68.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8L EnergyLite |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | DMA, IR, POR, PWM, WDT |
| Number of I/O | 6 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 1.5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| ROHS |  |

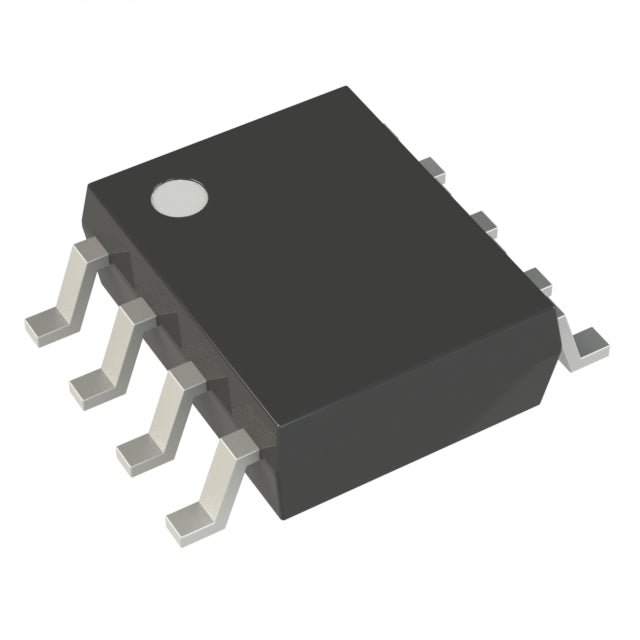

The STM8L001J3M3TR from STMicroelectronics is a low-power 8-bit MCU in an 8-SOIC package. It features 8KB of flash and 1.5KB of RAM, running at 16MHz. Operating from 1.8V to 3.6V, it integrates DMA, IR, POR, PWM, and WDT. Designed for extended temperature ranges, this MCU is a robust choice for industrial and automotive control applications.
- High-temperature tolerance: Rated for -40°C to 125°C, it withstands harsh thermal environments.
- DMA efficiency: Reduces CPU overhead for data transfers, improving real-time response.
- Compact SOIC-8: Simple to route and solder, reducing manufacturing complexity.
- Low-power architecture: Optimized for battery-operated devices with multiple low-power modes.
Industrial Sensor Interfaces
The 16MHz STM8 core with DMA can efficiently handle data from temperature, pressure, or flow sensors, while the 125°C rating allows placement near hot machinery.
Automotive Body Electronics
With a wide temperature range and WDT, this MCU is perfect for window lift controllers, mirror adjustment, or seat position memory modules.
Smart Lighting Ballasts
PWM outputs and IR support enable dimming and remote control in LED drivers, while the 8KB flash stores calibration curves.
Portable Medical Devices
The low 1.8V minimum voltage and small SOIC-8 package make it suitable for glucose meters, thermometers, or pulse oximeters.
Power Tool Safety Switches
POR and WDT ensure safe startup and operation in brushless motor controllers for drills or saws, even under vibration.
HVAC Zone Controllers
DMA reduces CPU load when reading multiple analog inputs, enabling precise temperature regulation in building automation.
- Q: What is the maximum operating temperature?
- A: The STM8L001J3M3TR operates from -40°C to 125°C, suitable for industrial and automotive environments.
- Q: How much flash memory does it have?
- A: It provides 8KB of flash program memory and 1.5KB of RAM.
- Q: Does it support DMA?
- A: Yes, it includes a DMA controller, along with IR, POR, PWM, and WDT peripherals.
- Q: What is the supply voltage range?
- A: It runs from 1.8V to 3.6V, ideal for low-power 3V systems.
STM8L001J3M3TR.pdf
