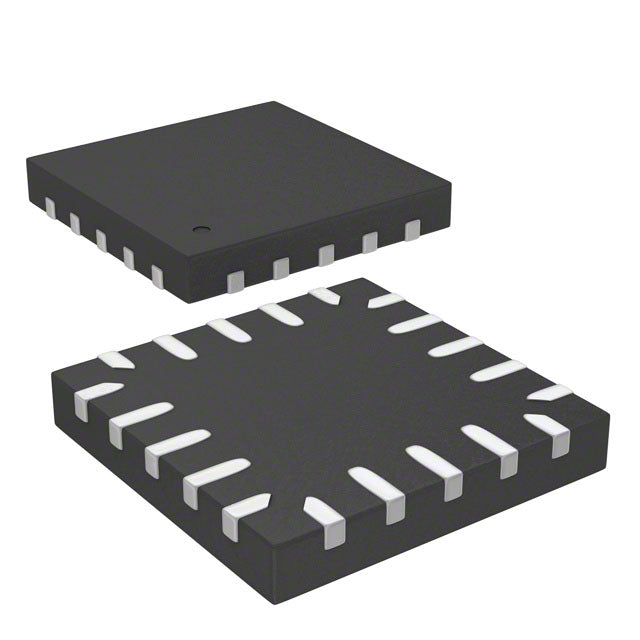

STMicroelectronics STM8L101F3U6ATR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.09 | $2.09 |
| 15+ | $1.37 | $20.55 |
| 25+ | $1.34 | $33.50 |
| 50+ | $1.27 | $63.50 |
| 100+ | $1.12 | $112.00 |
| N+ | $0.22 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8L EnergyLite |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Infrared, POR, PWM, WDT |
| Number of I/O | 18 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 1.5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-UFQFPN (3x3) |
| Package / Case | 20-UFQFN |
| ROHS |  |
The STMicroelectronics STM8L101F3U6ATR is an ultra-low-power 8-bit microcontroller with an STM8 core running at 16MHz. It offers 8KB flash and 1.5KB RAM in a compact 20-UFQFN package. With an infrared interface, PWM, and wide voltage range from 1.65V, it is designed for portable and battery-operated applications.
- Ultra-low voltage (1.65V) for single-cell battery operation.
- Integrated infrared interface for remote control.
- Compact 20-UFQFN package for miniaturized designs.
- Low power consumption for extended battery life.
Infrared Remote Controls
Integrated infrared peripheral simplifies IR signal generation for consumer remotes.
Wearable Health Monitors
Low 1.65V operation and small 20-UFQFN package enable compact wearable designs.
IoT Sensor Nodes
Low power consumption and PWM support periodic sensing and wireless transmission.
Portable Consumer Electronics
8KB flash and low voltage are ideal for simple handheld devices.
Smart Home Controllers
PWM and WDT provide reliable control for lighting and small appliances.
Battery Management Systems
Low voltage operation allows direct battery monitoring without extra regulators.
- Q: What is the supply voltage range?
- A: It operates from 1.65V to 3.6V, supporting low-voltage applications.
- Q: What is the core speed?
- A: The STM8 core runs at 16MHz.
- Q: How much flash memory is included?
- A: It has 8KB of flash memory.
- Q: Does it support infrared?
- A: Yes, it has an infrared interface for remote control applications.
- Q: What package is available?
- A: It comes in a 20-UFQFN package.
