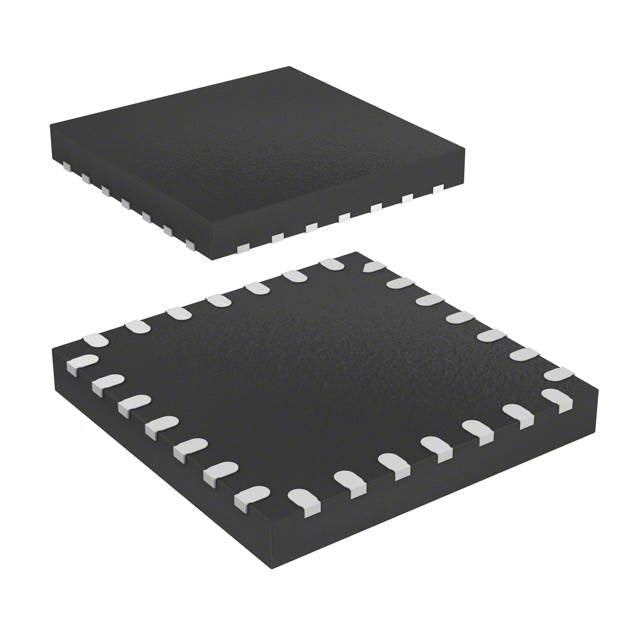

STMicroelectronics STM8L101G2U6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.37 | $3.37 |
| 15+ | $0.77 | $11.55 |
| 25+ | $0.76 | $19.00 |
| 50+ | $0.71 | $35.50 |
| 100+ | $0.63 | $63.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8L EnergyLite |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Infrared, POR, PWM, WDT |
| Number of I/O | 26 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1.5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-UFQFPN (4x4) |
| Package / Case | 28-UFQFN |
| ROHS |  |
The STM8L101G2U6TR is an ultra-low-power 8-bit MCU from STMicroelectronics, featuring an STM8 core at 16MHz. It provides 4KB flash and 1.5KB RAM in a compact 28-UFQFN package. With a wide 1.65V-3.6V supply range and integrated infrared, POR, PWM, and WDT, it is ideal for cost-sensitive, battery-driven applications.
- Ultra-low power consumption: 1.65V operation extends battery life in portable devices.
- Compact 28-UFQFN: saves PCB space for space-constrained designs.
- Integrated infrared: reduces external components for IR communication.
- Robust watchdog (WDT): ensures system reliability in noisy environments.
Portable Medical Devices
Low 1.65V operation and 16MHz STM8 core enable compact glucose meters and thermometers with extended battery life.
Smart Sensors
Integrated PWM and WDT support environmental monitoring nodes that require reliable periodic wake-ups and sensor excitation.
Infrared Remote Controls
The built-in infrared feature simplifies IR encoding/decoding for universal remotes and IR proximity switches.
Battery-Powered IoT Endpoints
Ultra-low supply voltage and POR ensure stable operation in coin-cell powered wireless tags and beacons.
Industrial Timers
With 1.5KB RAM and WDT, it handles simple timing and control loops in industrial counters and interlocks.
Wearable Fitness Trackers
Small 28-UFQFN package and 1.65V operation allow integration into slim wearable bands for step counting and heart-rate monitoring.
- Q: What is the operating voltage range of the STM8L101G2U6TR?
- A: It operates from 1.65V to 3.6V, suitable for low-power battery applications.
- Q: What is the maximum CPU speed?
- A: The STM8 core runs at up to 16MHz.
- Q: How much flash memory does it have?
- A: It includes 4KB of program flash memory.
- Q: What package is available?
- A: It comes in a 28-UFQFN package.
