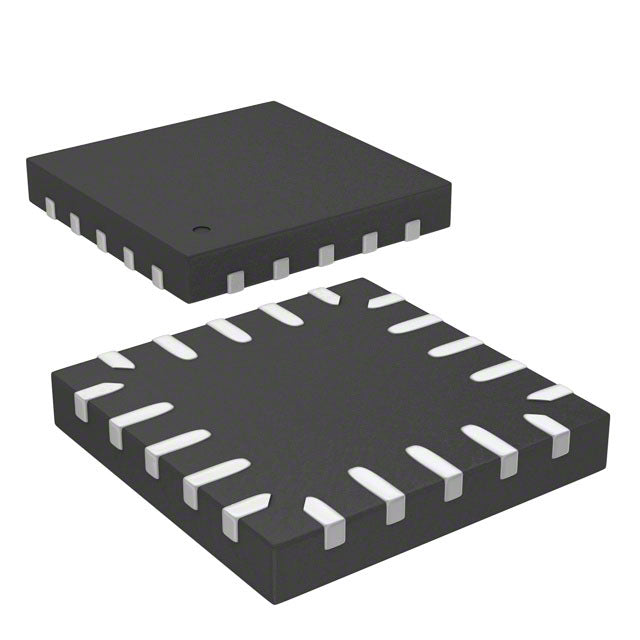

STMicroelectronics STM8L151F2U6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.38 | $2.38 |
| 15+ | $1.56 | $23.40 |
| 25+ | $1.53 | $38.25 |
| 50+ | $1.45 | $72.50 |
| 100+ | $1.28 | $128.00 |
| N+ | $0.26 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8L EnergyLite |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, IR, POR, PWM, WDT |
| Number of I/O | 18 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-UFQFPN (3x3) |
| Package / Case | 20-UFQFN |
| ROHS |  |
The STM8L151F2U6TR from STMicroelectronics is a low-power 8-bit microcontroller in a tiny 20-pin UFQFN package. It features the STM8 core running at 16MHz, with 4KB of flash and 1KB of RAM. Operating from 1.8V to 3.6V, it integrates DMA, an infrared interface, PWM timers, and a watchdog timer. This MCU is optimized for space-constrained, battery-powered applications, delivering robust performance in a minimal footprint.
