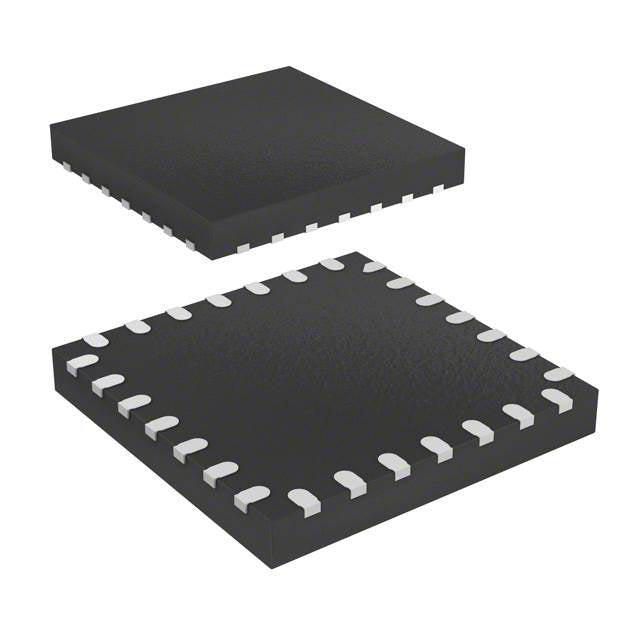

STMicroelectronics STM8L151G6U3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.89 | $3.89 |
| 15+ | $2.56 | $38.40 |
| 25+ | $2.50 | $62.50 |
| 50+ | $2.36 | $118.00 |
| 100+ | $2.09 | $209.00 |
| N+ | $0.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8L EnergyLite |
| Packaging | Tray | |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, IR, POR, PWM, WDT |
| Number of I/O | 26 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 18x12b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-UFQFPN (4x4) |
| Package / Case | 28-UFQFN |
| ROHS |  |
The STM8L151G6U3 from STMicroelectronics is an ultra-low-power 8-bit microcontroller based on the STM8 core. It operates at up to 16 MHz and features 32KB of Flash and 2KB of RAM. With a supply voltage range of 1.8V to 3.6V, it is optimized for battery-powered and energy-efficient applications. The device includes a rich set of peripherals such as DMA, IR, PWM, and multiple communication interfaces, all in a compact 28-UFQFN package.
- Ultra-Low Power: Designed for energy-efficient operation, extending battery life in portable devices.
- Compact Size: The 28-UFQFN package is ideal for space-constrained designs.
- Integrated DMA: Allows data transfer without CPU intervention, improving system efficiency.
- Wide Temperature Range: Operates from -40°C to 125°C, suitable for harsh environments.
- Rich Peripherals: Includes IR, PWM, and multiple communication interfaces for versatile applications.
Wearable Health Monitors
The ultra-low-power STM8L core and multiple low-power modes enable continuous monitoring of heart rate and activity with minimal battery drain.
Smart Sensors
With its integrated DMA and 16 MHz speed, it can efficiently process data from environmental sensors (temperature, humidity) and communicate over I2C or SPI.
Industrial Process Control
The extended temperature range (-40°C to 125°C) and robust peripherals make it suitable for controlling valves, pumps, and monitoring pressure in industrial settings.
Portable Instruments
Its small 28-UFQFN package and low power consumption are ideal for handheld multimeters, thermometers, and other portable measurement tools.
Building Automation
It can manage lighting control, HVAC sensors, and security systems, providing energy-efficient operation and reliable communication.
Remote Controls
The IR peripheral simplifies the implementation of infrared remote control protocols, making it a cost-effective solution for consumer electronics.
- Q: What is the core architecture of the STM8L151G6U3?
- A: It is based on the STM8 8-bit core, operating at up to 16 MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 3.6V.
- Q: How much Flash and RAM are available?
- A: It has 32KB of Flash and 2KB of RAM.
- Q: Does it support low-power modes?
- A: Yes, it features multiple low-power modes including halt, active-halt, and wait, making it suitable for battery-powered applications.
- Q: What package is it available in?
- A: It comes in a 28-UFQFN package.
