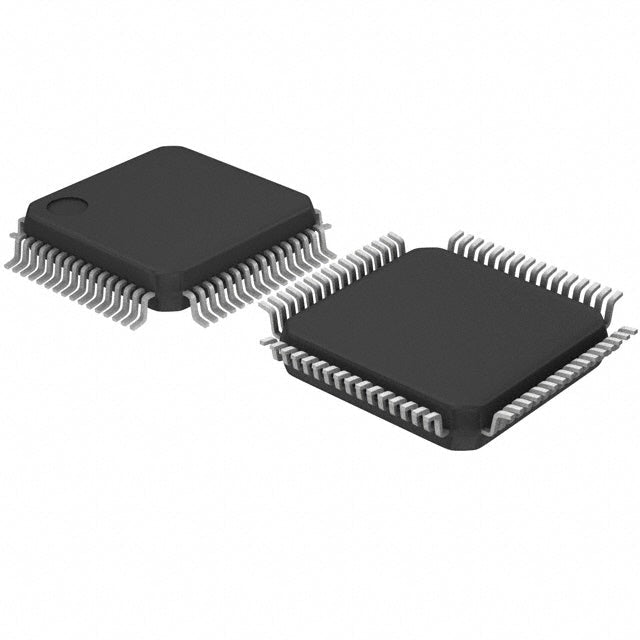

STMicroelectronics STM8L152R6T6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.10 | $5.10 |
| 15+ | $3.35 | $50.25 |
| 25+ | $3.28 | $82.00 |
| 50+ | $3.09 | $154.50 |
| 100+ | $2.73 | $273.00 |
| N+ | $0.55 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8L EnergyLite |
| Packaging | Tray | |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, IR, LCD, POR, PWM, WDT |
| Number of I/O | 54 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 28x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The STM8L152R6T6 from STMicroelectronics is an ultra-low-power 8-bit microcontroller built on the advanced STM8 core. It operates at up to 16 MHz with a supply voltage range of 1.8V to 3.6V, making it ideal for energy-conscious designs. The device features 32KB of flash memory and 2KB of RAM, along with a rich set of peripherals including an LCD driver, DMA, PWM, and multiple communication interfaces. Housed in a 64-LQFP package, it operates from -40°C to +85°C, ensuring reliability in diverse environments. Its integrated brown-out reset, power-on reset, and watchdog timer enhance system robustness, making it a versatile choice for industrial and consumer applications.
