STMicroelectronics STM8S001J3M3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.23 | $1.23 |
| 15+ | $0.81 | $12.15 |
| 25+ | $0.79 | $19.75 |
| 50+ | $0.75 | $37.50 |
| 100+ | $0.66 | $66.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8 |
| Packaging | Tube | |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SmartCard, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 5 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 3x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| ROHS |  |

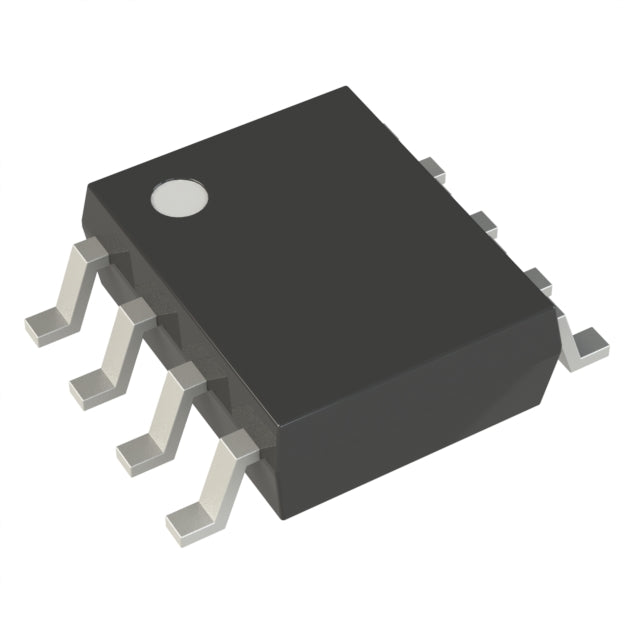

The STM8S001J3M3 from STMicroelectronics is an 8-bit STM8 microcontroller in an 8-pin SOIC package. It operates from 2.95V to 5.5V and runs at 16MHz, with 8KB Flash and 1KB RAM. It includes a 10-bit ADC, PWM, brown-out reset, and watchdog timer, designed for robust performance in industrial and automotive applications.
- Wide Voltage Range: 2.95V to 5.5V supports both 3.3V and 5V logic systems.
- Extended Temperature: -40°C to 125°C ensures reliability in harsh environments.
- 8KB Flash: Ample code space for complex control algorithms.
- Robust I/O: High sink/source current for direct LED and relay driving.
- Mature STM8 Core: Proven architecture with extensive peripheral set.
Industrial Sensor Interfaces
The wide temperature range (-40°C to 125°C) and 5V tolerance make it ideal for factory automation sensors.
Automotive Body Electronics
With 8KB Flash and robust I/O, it handles window lift or mirror control modules in vehicles.
Power Supply Monitoring
Its 16MHz core and ADC can monitor voltage/current in SMPS units with fast response.
HVAC Control Boards
5V operation simplifies direct interfacing with relays and triacs in heating/cooling systems.
Consumer Appliances
Use it for washing machine timers or microwave control panels with PWM for motor speed.
Lighting Ballasts
High-temperature rating supports LED drivers in enclosed fixtures where heat dissipation is limited.
- Q: What is the supply voltage range?
- A: It operates from 2.95V to 5.5V, compatible with 3.3V and 5V systems.
- Q: What is the maximum clock frequency?
- A: The STM8 core runs at up to 16MHz.
- Q: How much Flash memory is available?
- A: It provides 8KB of program memory.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 125°C, suitable for industrial environments.
- Q: What package does it come in?
- A: It is available in an 8-pin SOIC package.
