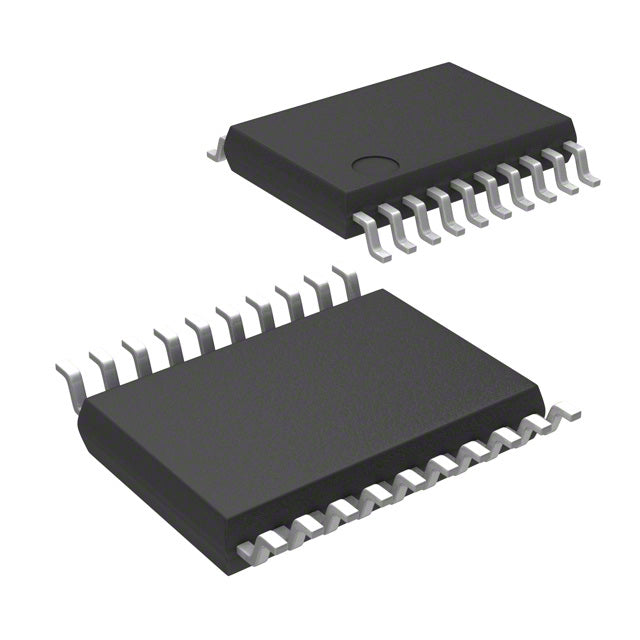

STMicroelectronics STM8S003F3P6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.86 | $0.86 |
| 15+ | $0.79 | $11.85 |
| 25+ | $0.77 | $19.25 |
| 50+ | $0.73 | $36.50 |
| 100+ | $0.65 | $65.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 5x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The STM8S003F3P6TR from STMicroelectronics is an 8-bit STM8 microcontroller in a 20-TSSOP package. It operates from 2.95V to 5.5V and runs at 16MHz, offering a cost-effective solution for embedded control. With 8KB Flash and 1KB RAM, it integrates UART, SPI, I2C, ADC, timers, and PWM. Its robust design with BOR and POR ensures dependable operation in industrial and consumer applications.
- Cost-effective 8-bit core: Low unit price for high-volume production.
- Rich communication interfaces: UART, SPI, I2C enable easy system integration.
- Wide voltage range (2.95-5.5V): Flexible power supply design.
- Compact TSSOP-20: Saves board space in dense designs.
- Proven STM8 architecture: Reliable and well-documented ecosystem.
Industrial Sensor Modules
With 16MHz and 8KB Flash, it can process analog signals and communicate via UART/RS485 in factory automation.
Power Supply Control
Its PWM and ADC enable digital control of SMPS or battery chargers, with brown-out reset for safety.
Consumer Appliances
In washing machines or microwaves, it manages buttons, displays, and motor relays with robust I/O.
Automotive Body Electronics
Operating at 5V and -40°C to 85°C, it suits window lift or wiper control modules.
Smart Home Devices
With I2C/SPI, it interfaces with sensors and Wi-Fi modules for thermostats or smart plugs.
Medical Monitoring (Non-Critical)
Its low cost and reliability make it suitable for wearable heart-rate or temperature monitors.
- Q: What is the operating voltage?
- A: 2.95V to 5.5V, compatible with 3.3V and 5V logic.
- Q: What is the CPU frequency?
- A: 16MHz, with a 16MHz max clock for the STM8 core.
- Q: How much Flash and RAM?
- A: 8KB Flash and 1KB RAM, suitable for moderate firmware.
- Q: What package is this?
- A: 20-TSSOP (4.40mm width), thin and space-saving.
- Q: Does it have communication interfaces?
- A: Yes, UART, SPI, and I2C for connectivity.
