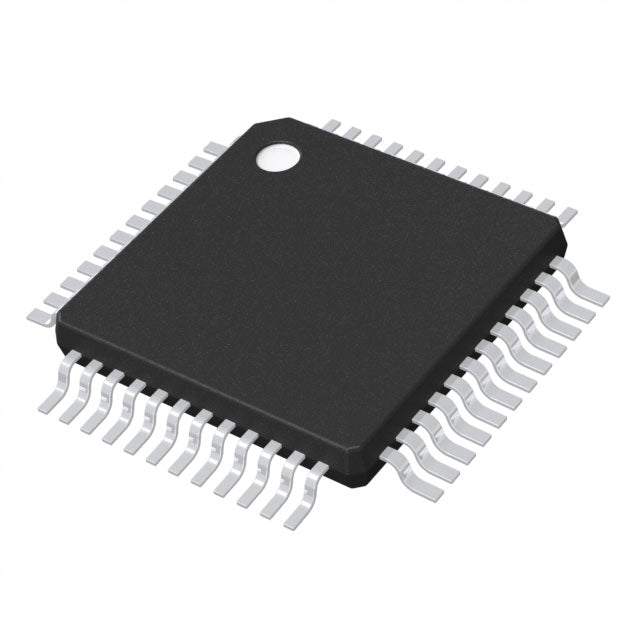

STMicroelectronics STM8S005C6T6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.30 | $3.30 |
| 15+ | $2.17 | $32.55 |
| 25+ | $2.12 | $53.00 |
| 50+ | $2.01 | $100.50 |
| 100+ | $1.77 | $177.00 |
| N+ | $0.35 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 38 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 10x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LQFP (7x7) |
| Package / Case | 48-LQFP |
| ROHS |  |
The STM8S005C6T6TR from STMicroelectronics is a cost-effective 8-bit microcontroller featuring a 16 MHz STM8 core. It offers 32KB of flash and 2KB of RAM, with a supply voltage range of 2.95V to 5.5V, making it versatile for both 3.3V and 5V applications. The device includes essential peripherals like PWM, watchdog timer, and brown-out reset, all housed in a compact 48-LQFP package. Its robust design and wide operating temperature range make it a reliable choice for industrial and consumer electronics.
- Wide Voltage Compatibility: Supports 2.95V to 5.5V, simplifying power supply design and enabling direct 5V logic interfacing.
- Cost-Effective Performance: 16 MHz core with 32KB flash provides ample processing power for budget-conscious projects.
- Compact Package: 48-LQFP saves PCB space, ideal for miniaturized products.
- Reliable Operation: Brown-out reset and watchdog timer enhance system stability in noisy environments.
- Easy Migration: STM8 family compatibility allows scaling to other memory sizes without redesign.
Home Appliance Control
The 5V operation and robust PWM outputs make it ideal for controlling washing machines, dishwashers, and microwave ovens, providing reliable motor and heater control.
Industrial Sensors
With 16 MHz speed and multiple timers, it can process sensor data from temperature, pressure, and flow sensors, enabling precise monitoring in factory automation.
Power Tools
Its wide voltage range and WDT ensure stable operation in battery-powered drills and saws, handling high-current motor drivers with PWM.
Lighting Systems
PWM channels allow dimming and color control for LED lighting, while the brown-out reset prevents flicker during power dips.
Automotive Aftermarket
Operating from 2.95V to 5.5V, it can interface directly with car battery voltages, suitable for dashboards, window controllers, and alarm systems.
Smart Meters
The 32KB flash supports metering algorithms, and the low-power modes help meet energy efficiency standards for utility meters.
- Q: What is the core architecture of the STM8S005C6T6TR?
- A: It uses the STM8 8-bit core running at up to 16 MHz, offering efficient performance for cost-sensitive applications.
- Q: What is the operating voltage range?
- A: The device operates from 2.95V to 5.5V, compatible with standard 3.3V and 5V systems.
- Q: How much flash and RAM does it have?
- A: It provides 32KB of flash memory and 2KB of RAM, sufficient for moderate-complexity firmware.
- Q: What package is available?
- A: It comes in a 48-pin LQFP package, suitable for space-constrained PCB designs.
