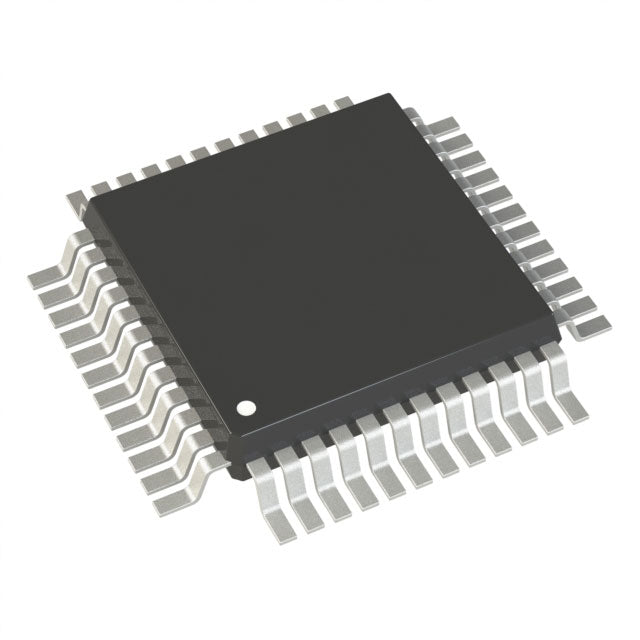

STMicroelectronics STM8S005K6T6CTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.55 | $2.55 |
| 15+ | $1.67 | $25.05 |
| 25+ | $1.64 | $41.00 |
| 50+ | $1.55 | $77.50 |
| 100+ | $1.37 | $137.00 |
| N+ | $0.27 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | STM8A |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 7x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-LQFP (7x7) |
| Package / Case | 32-LQFP |
| ROHS |  |
The STM8S005K6T6CTR from STMicroelectronics is a cost-effective 8-bit MCU built on the high-performance STM8A core. It delivers 16MHz processing speed with 32KB of flash and 2KB of RAM. Operating from 2.95V to 5.5V, it integrates essential peripherals like PWM, WDT, and brown-out reset. Housed in a compact 32-LQFP package, it is designed for reliable operation across -40°C to 85°C, making it ideal for industrial and consumer control applications.
- Wide Voltage Range (2.95V-5.5V): Directly powers from 5V logic or 3.3V rails, reducing external regulation components.
- Robust Reset Management: Integrated POR and brown-out detection prevent data corruption during power fluctuations.
- High Integration: PWM and WDT on-chip minimize external parts, lowering system cost and board space.
- Extended Temperature Range: -40°C to 85°C ensures operation in harsh industrial environments.
Industrial Control Panels
With a 2.95V-5.5V supply and robust I/O, it directly interfaces with 5V sensors and relays without level shifters, simplifying BOM.
Home Appliance Timers
The 16MHz STM8A core and 32KB flash handle complex timing sequences for washing machines or microwaves, while the WDT ensures fail-safe operation.
Battery-Powered Tools
Low-power modes and a wide voltage range allow direct connection to 3-4 cell NiMH or Li-ion packs, with brown-out reset protecting firmware during discharge.
Automotive Body Electronics (Non-Safety)
Rated for -40°C to 85°C, it suits interior lighting control or window lift modules, using PWM for smooth motor speed regulation.
Smart Meters
The 2KB RAM buffers metering data, while the 32KB flash stores calibration constants. Its 5V tolerance eases interfacing with legacy utility infrastructure.
HVAC Thermostats
PWM outputs drive triacs for heater control, and the brown-out detector prevents erratic behavior during line voltage dips.
