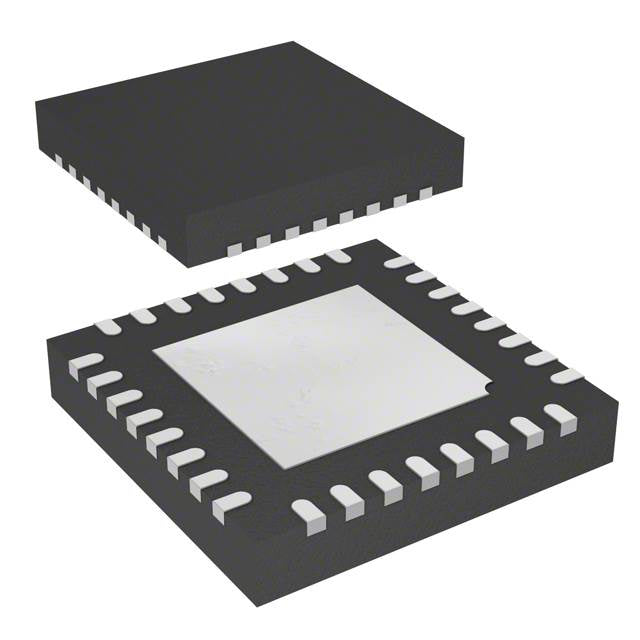

STMicroelectronics STM8S105K6U3ATR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.97 | $5.97 |
| 15+ | $1.37 | $20.55 |
| 25+ | $1.34 | $33.50 |
| 50+ | $1.27 | $63.50 |
| 100+ | $1.12 | $112.00 |
| N+ | $0.22 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 7x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-UFQFPN (5x5) |
| Package / Case | 32-UFQFN Exposed Pad |
| ROHS |  |
The STM8S105K6U3ATR from STMicroelectronics is an 8-bit MCU built on the high-performance STM8 core. It delivers 16 MHz operation with 32 KB flash and 2 KB RAM. The device supports a wide 2.95V to 5.5V supply, making it flexible for industrial and consumer designs. Integrated features include brown-out detection, POR, PWM, and a watchdog timer. Housed in a compact 32-UFQFN package, it operates reliably from -40°C to 125°C.
- Wide voltage range (2.95V-5.5V) simplifies power supply design and supports legacy 5V logic.
- High temperature tolerance (-40°C to 125°C) enables use in automotive and industrial environments.
- Integrated WDT and brown-out reset improve system reliability without external components.
- Compact UFQFN package saves board space for space-constrained applications.
Industrial Control
Use the STM8S105K6U3ATR in PLCs and motor controllers. Its 16 MHz core and PWM timers handle real-time control loops efficiently.
Automotive Body Electronics
With a -40°C to 125°C range and 5V operation, it suits window lifts, wiper control, and lighting modules in harsh environments.
Power Management
Integrate it into battery chargers or DC-DC converters. The brown-out reset and WDT ensure safe startup and fault recovery.
Consumer Appliances
Drive user interfaces and sensors in washing machines or microwaves. The 32 KB flash supports complex firmware for multiple modes.
Sensor Nodes
Combine with analog sensors for temperature or pressure monitoring. Low power modes extend battery life in portable devices.
Lighting Systems
Control LED dimming and color mixing using PWM outputs. The small UFQFN package fits compact PCB designs.
- Q: What is the operating voltage range of the STM8S105K6U3ATR?
- A: It operates from 2.95V to 5.5V, making it suitable for 3.3V and 5V systems.
- Q: What is the maximum CPU speed?
- A: The STM8 core runs at up to 16 MHz.
- Q: How much flash memory does it have?
- A: It provides 32 KB of program flash memory.
- Q: What package is available?
- A: It comes in a 32-UFQFN exposed pad package.
- Q: Does it include a watchdog timer?
- A: Yes, it features a WDT along with POR, PWM, and brown-out detection.
