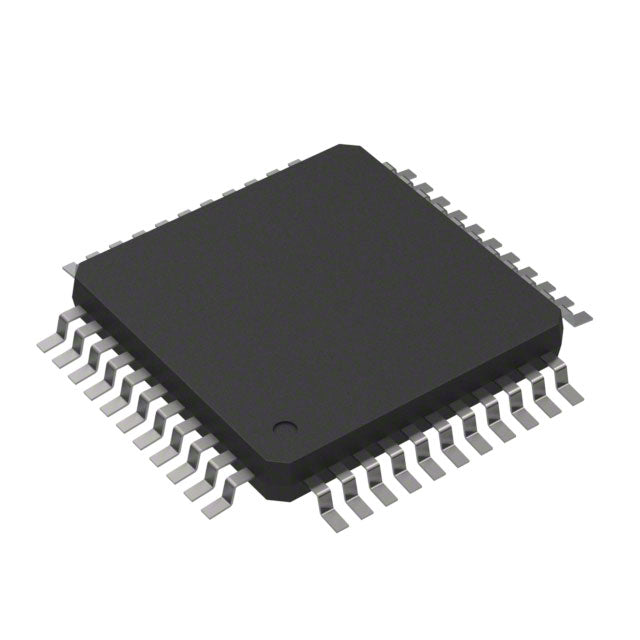

STMicroelectronics STM8S105S6T6CTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.07 | $4.07 |
| 15+ | $2.68 | $40.20 |
| 25+ | $2.62 | $65.50 |
| 50+ | $2.47 | $123.50 |
| 100+ | $2.18 | $218.00 |
| N+ | $0.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 9x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 44-LQFP |
| ROHS |  |
The STM8S105S6T6CTR from STMicroelectronics is a cost-effective 8-bit microcontroller based on the STM8 core, operating at up to 16 MHz. It features 32KB of flash memory and 2KB of RAM, providing sufficient resources for a wide range of applications. The device operates from 2.95V to 5.5V, making it versatile for both 3.3V and 5V designs. Its 44-LQFP package offers a compact footprint with ample I/O pins. Integrated peripherals include PWM, brown-out detection, POR, and WDT, ensuring reliable operation in demanding environments.
- Cost-effective 8-bit solution: Low unit cost makes it ideal for high-volume consumer and industrial products.
- Wide voltage range (2.95V-5.5V): Supports both 3.3V and 5V logic, simplifying system integration.
- Rich peripheral set: Includes multiple timers, UART, SPI, I2C, and ADC, reducing external components.
- Robust reliability features: Brown-out detection, POR, and WDT enhance system stability.
- Compact 44-LQFP package: Balances pin count and board space for moderate-complexity designs.
Consumer Electronics
With its 16MHz core and rich peripherals, the STM8S105S6T6CTR is ideal for remote controls, toys, and small home appliances.
Industrial Sensors
Its robust I/O and ADC capabilities make it suitable for pressure, temperature, and flow sensors in industrial monitoring systems.
Automotive Aftermarket
Operating at 5V and with a wide temperature range, it can be used in car alarm systems, window controls, and dashboard displays.
Power Tools
The MCU's PWM outputs and protection features enable efficient motor control in drills, saws, and other power tools.
Smart Lighting
Its PWM channels are perfect for LED dimming and color control in smart bulbs and architectural lighting.
HVAC Controllers
With reliable operation and multiple timers, it can manage thermostats, fan coils, and air conditioning units.
- Q: What is the maximum operating frequency of the STM8S105S6T6CTR?
- A: The STM8S105S6T6CTR operates at up to 16 MHz, offering a balanced performance for cost-sensitive applications.
- Q: What is the supply voltage range?
- A: It requires a supply voltage between 2.95V and 5.5V, making it compatible with 3.3V and 5V systems.
- Q: How much flash and RAM does it have?
- A: It includes 32KB of flash memory and 2KB of RAM, suitable for moderate-complexity embedded designs.
- Q: What package is available?
- A: The STM8S105S6T6CTR comes in a 44-LQFP package, providing a good balance between pin count and footprint.
