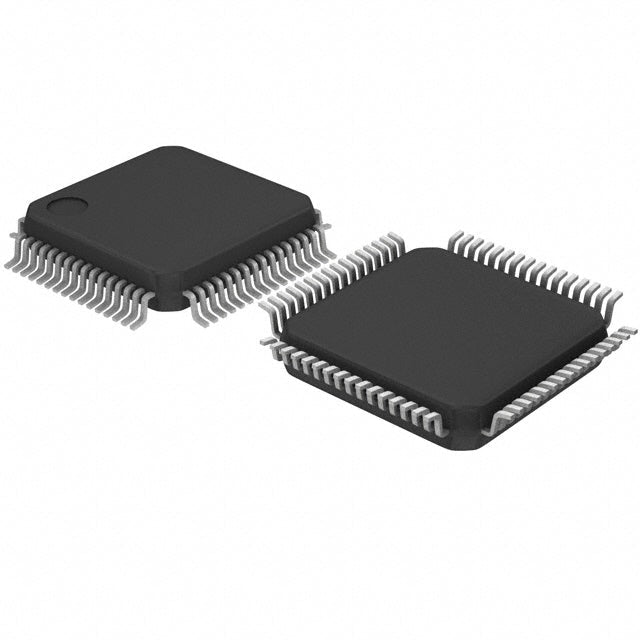

STMicroelectronics STM8S207R6T6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.33 | $5.33 |
| 15+ | $3.51 | $52.65 |
| 25+ | $3.43 | $85.75 |
| 50+ | $3.24 | $162.00 |
| 100+ | $2.86 | $286.00 |
| N+ | $0.57 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Tray | |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 52 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 64-LQFP |
| ROHS |  |
The STM8S207R6T6 from STMicroelectronics is a high-performance 8-bit microcontroller built on the advanced STM8 core. It operates at up to 24 MHz and supports a supply voltage range of 2.95V to 5.5V, making it versatile for both 3.3V and 5V applications. With 32KB of flash memory and 6KB of RAM, it provides ample space for complex firmware. The device includes essential peripherals such as brown-out reset, power-on reset, PWM, and watchdog timer, ensuring robust operation in demanding environments. Housed in a 64-pin LQFP package, it is ideal for space-constrained industrial, automotive, and consumer designs.
- Wide voltage range (2.95V-5.5V): Enables direct use in both 3.3V and 5V systems without level shifters, simplifying design.
- High-speed 24MHz core: Provides fast processing for real-time control and communication tasks, improving system responsiveness.
- Robust reset and watchdog features: Brown-out detect and WDT enhance reliability in harsh electrical environments, reducing system failures.
- Large memory (32KB flash, 6KB RAM): Supports complex applications and data buffering, reducing the need for external memory.
- 64-pin LQFP package: Offers a compact footprint with ample I/O for peripheral integration, saving PCB space.
Industrial Control Systems
With a 24MHz STM8 core and 5V tolerant I/O, the STM8S207R6T6 handles real-time control loops for motor drives and PLCs, ensuring reliable operation in noisy environments.
Automotive Body Electronics
Operating from 2.95V to 5.5V and -40°C to 85°C, it suits window lift, lighting, and sensor modules, providing robust brown-out protection for safety-critical functions.
Smart Home Gateways
The 64-pin LQFP package and 32KB flash enable complex protocol handling for Zigbee or Z-Wave bridges, while PWM outputs drive dimmers and actuators.
Power Management Units
Its integrated WDT and POR ensure safe startup and shutdown sequences in battery chargers and DC-DC converters, with 6KB RAM for dynamic voltage scaling algorithms.
Medical Monitoring Devices
The wide voltage range and low-power features support portable patient monitors, where the MCU processes sensor data and drives alarms with minimal power consumption.
Consumer Appliances
From washing machines to air conditioners, the STM8S207R6T6 manages user interfaces, sensor inputs, and motor control, leveraging its PWM and WDT for reliable operation.
- Q: What is the operating voltage range of the STM8S207R6T6?
- A: It operates from 2.95V to 5.5V, making it suitable for 3.3V and 5V systems.
- Q: What is the maximum CPU speed?
- A: The STM8 core runs at up to 24 MHz, delivering efficient performance for control applications.
- Q: How much flash and RAM does it have?
- A: It features 32KB of program flash and 6KB of RAM, ideal for mid-range embedded tasks.
- Q: What package is available?
- A: It comes in a 64-pin LQFP package, suitable for compact PCB designs.
- Q: Does it include watchdog and reset features?
- A: Yes, it has brown-out detect/reset, POR, PWM, and WDT for robust operation.
