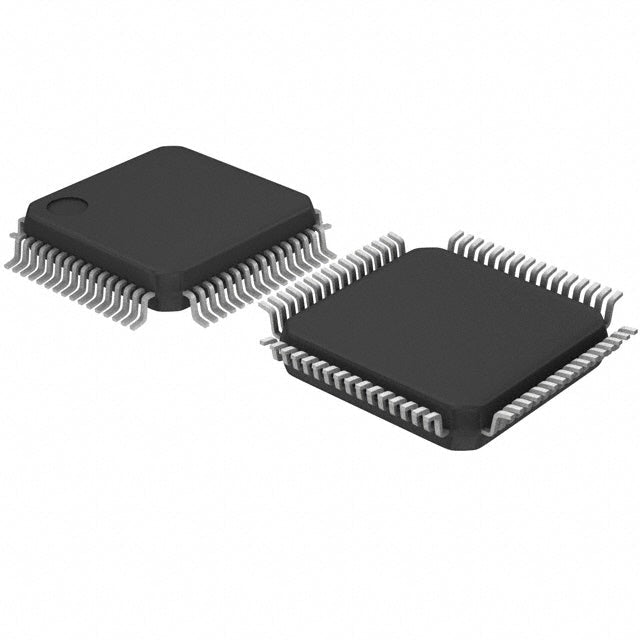

STMicroelectronics STM8S207R8T6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.88 | $8.88 |
| 15+ | $2.04 | $30.60 |
| 25+ | $2.00 | $50.00 |
| 50+ | $1.89 | $94.50 |
| 100+ | $1.67 | $167.00 |
| N+ | $0.33 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 52 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1.5K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (14x14) |
| Package / Case | 64-LQFP |
| ROHS |  |
The STM8S207R8T6TR from STMicroelectronics is a high-performance 8-bit microcontroller built on the STM8 core, operating at up to 24MHz. It provides 64KB of flash memory and 6KB of RAM, packaged in a compact 64-LQFP. With a supply voltage range of 2.95V to 5.5V, it integrates essential features like brown-out detection, POR, PWM, and watchdog timers, making it ideal for industrial control, consumer electronics, and automotive applications.
- High Efficiency: 24MHz STM8 core delivers fast processing for real-time tasks, reducing cycle time.
- Robust Reliability: Integrated brown-out reset and watchdog timer prevent system failures in unstable power conditions.
- Flexible I/O: 64-LQFP package offers ample GPIOs for complex peripheral interfacing.
- Wide Voltage Range: Supports 2.95V to 5.5V, simplifying power supply design.
- Extended Temperature Range: Operates from -40°C to 85°C, suitable for harsh environments.
Industrial Automation Controllers
With a 24MHz STM8 core and 64KB flash, this MCU handles real-time control loops for PLCs and motor controllers, supported by PWM and WDT for reliable operation.
Power Management Systems
The 2.95V-5.5V supply range and brown-out detection ensure stable performance in battery chargers and power inverters, monitoring voltage thresholds accurately.
Consumer Appliances
In washing machines or microwaves, the 64-LQFP package and 6KB RAM manage user interfaces and sensor inputs with low power consumption.
Automotive Body Electronics
Operating from -40°C to 85°C, it suits window lift or lighting modules, using POR and WDT for fail-safe operation in harsh environments.
Smart Sensors
The integrated PWM and analog features enable precise signal conditioning for temperature or pressure sensors in IoT nodes.
Medical Monitoring Devices
With 64KB memory and robust reset features, it supports portable patient monitors requiring reliable data logging and low-power modes.
- Q: What is the operating voltage range of the STM8S207R8T6TR?
- A: The supply voltage range is 2.95V to 5.5V, suitable for industrial and consumer applications.
- Q: What is the maximum CPU speed?
- A: The STM8 core runs at up to 24 MHz, providing efficient processing for control tasks.
- Q: How much flash memory does this MCU have?
- A: It includes 64KB of program flash memory and 6KB of RAM.
- Q: What package is available?
- A: It comes in a 64-LQFP package, ideal for compact PCB designs.
- Q: Does it support PWM and watchdog timers?
- A: Yes, it features PWM, WDT, POR, and brown-out detection for robust operation.
