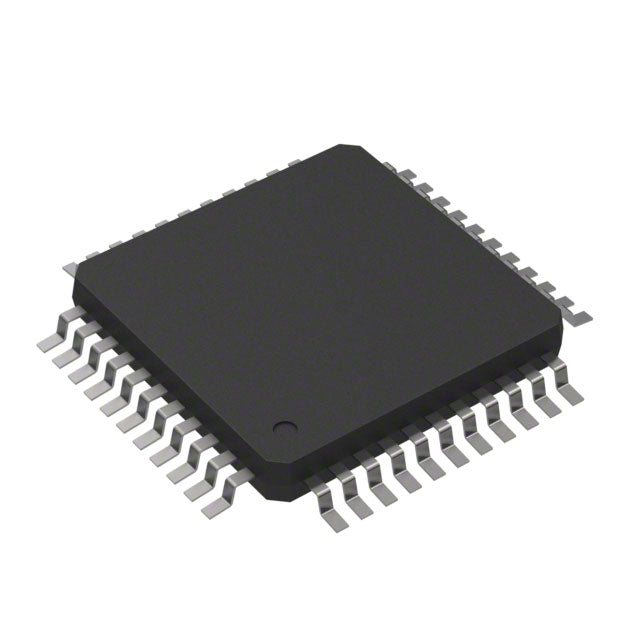

STMicroelectronics STM8S207S6T3CTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.61 | $5.61 |
| 15+ | $3.69 | $55.35 |
| 25+ | $3.61 | $90.25 |
| 50+ | $3.41 | $170.50 |
| 100+ | $3.01 | $301.00 |
| N+ | $0.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 9x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 44-LQFP |
| ROHS |  |
The STM8S207S6T3CTR from STMicroelectronics is a high-performance 8-bit microcontroller built on the advanced STM8 core. It operates at up to 24 MHz with 32KB flash and 6KB SRAM, delivering reliable control in a 44-LQFP package. Its 2.95V to 5.5V supply range and extended temperature rating make it suitable for industrial and automotive environments. Integrated features include PWM, watchdog timer, brown-out reset, and power-on reset, reducing external component count.
- Wide voltage range (2.95V-5.5V) simplifies direct battery or 5V logic interfacing without extra regulators.
- High temperature tolerance (-40°C to 125°C) ensures reliable operation in harsh automotive and industrial settings.
- Integrated brown-out detect and POR improve system safety by preventing erratic behavior during power fluctuations.
- 24 MHz STM8 core provides ample processing headroom for real-time control loops and communication protocols.
Industrial Motor Control
With 24 MHz STM8 core and PWM outputs, this MCU handles sensorless BLDC motor commutation and speed loops in 24V industrial drives.
Automotive Body Electronics
Operating from -40°C to 125°C and 5V tolerant I/Os, it suits window lift, wiper, and lighting control modules in vehicles.
Smart Sensors and Transmitters
The 6KB SRAM and 32KB flash enable local signal conditioning and linearization for pressure or temperature transmitters.
Power Supply Supervision
Brown-out detect and POR ensure safe startup and shutdown sequencing in AC-DC and DC-DC power converters.
Consumer Appliance Control Panels
Its 5V operation and robust I/O drive directly interface with keypads, LEDs, and small relays in washing machines and ovens.
Battery-Powered Handheld Tools
Low-power modes and wide voltage range allow operation from 3-cell NiMH or single Li-ion packs with minimal external regulation.
- Q: What is the operating voltage range of the STM8S207S6T3CTR?
- A: The supply voltage range is 2.95V to 5.5V, suitable for industrial and automotive power rails.
- Q: What is the maximum CPU speed?
- A: The STM8 core runs at up to 24 MHz, providing efficient processing for control applications.
- Q: How much flash memory does this MCU have?
- A: It includes 32KB of program flash and 6KB of SRAM for data storage.
- Q: What package is available?
- A: It comes in a 44-pin LQFP package, ideal for compact PCB designs.
- Q: Does it support PWM and watchdog?
- A: Yes, it features PWM, WDT, brown-out reset, and POR for robust operation.
