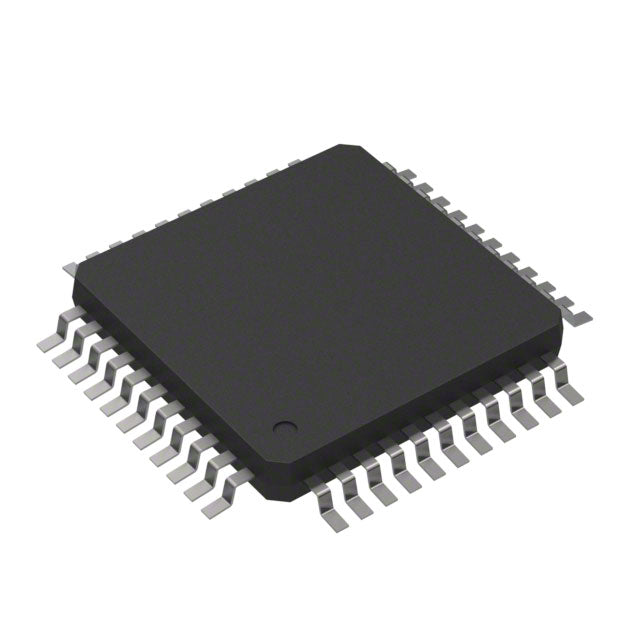

STMicroelectronics STM8S207S6T6C
Regular price
$7.86
Regular price
$1.97
Sale price
$7.86
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.86 | $7.86 |
| 15+ | $1.81 | $27.15 |
| 25+ | $1.77 | $44.25 |
| 50+ | $1.67 | $83.50 |
| 100+ | $1.48 | $148.00 |
| N+ | $0.30 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Tray | NULL |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 9x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 44-LQFP |
| ROHS |  |
The STM8S207S6T6C is an 8-bit MCU from STMicroelectronics with a 24MHz STM8 core. It offers 32KB flash and 6KB RAM in a 44-LQFP package. Operating from 2.95V to 5.5V, it includes brown-out reset, POR, PWM, and WDT for cost-effective embedded control.
- Wide voltage range (2.95-5.5V): Direct 5V system compatibility.
- Mature STM8 architecture: Extensive ecosystem and code examples.
- 6KB RAM: Ample for 8-bit applications.
- Industrial temperature range: Reliable in factory environments.
Industrial Automation
24MHz STM8 core with 32KB flash handles PLC I/O control and sensor interfacing.
Power Tools
5V operation and PWM support brushless motor control in cordless drills.
HVAC Systems
Robust I/O and WDT ensure reliable thermostat and fan control.
Smart Meters
Low-cost 8-bit solution for energy measurement and data logging.
Automotive Aftermarket
Wide voltage range tolerates battery fluctuations in car accessories.
Consumer Appliances
LQFP-44 package simplifies PCB layout for washing machines and microwaves.
- Q: What is the supply voltage range?
- A: 2.95V to 5.5V.
- Q: What is the core architecture?
- A: STM8 8-bit core.
- Q: How much RAM is available?
- A: 6KB.
- Q: What is the operating temperature?
- A: -40°C to 85°C.
Base Product Number ：
STM8S207S6
STM8S207S6T6C.pdf
