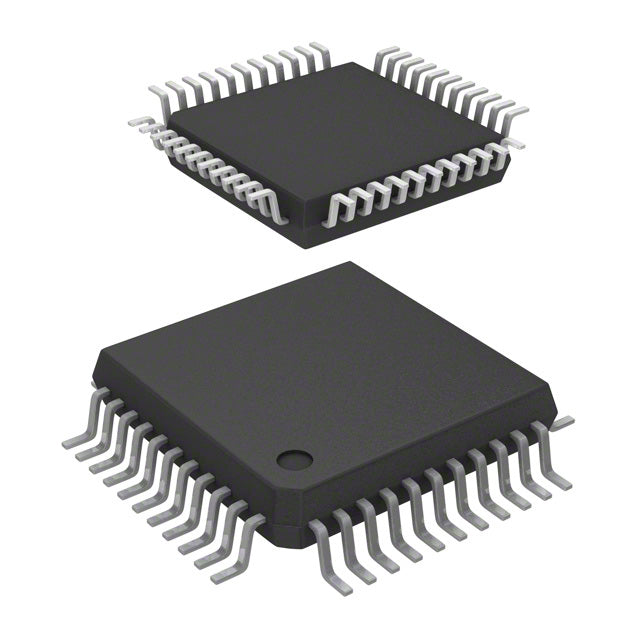

STMicroelectronics STM8S207S8T3C
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.78 | $5.78 |
| 15+ | $3.80 | $57.00 |
| 25+ | $3.72 | $93.00 |
| 50+ | $3.51 | $175.50 |
| 100+ | $3.10 | $310.00 |
| N+ | $0.62 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Tray | |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1.5K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 9x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-LQFP (10x10) |
| Package / Case | 44-LQFP |
| ROHS |  |
The STM8S207S8T3C is a powerful 8-bit microcontroller from STMicroelectronics, built on the efficient STM8 core. It delivers 24MHz performance with 64KB of flash and 6KB of RAM, packaged in a 44-LQFP. Designed for extended temperature ranges (-40°C to 125°C), it excels in automotive and industrial applications. Its rich feature set includes PWM, WDT, and brown-out reset, ensuring dependable operation in demanding environments.
- High Temperature Tolerance: Operates up to 125°C, suitable for under-hood automotive and industrial heat.
- Large Flash Memory: 64KB allows complex firmware and data logging.
- Fast 24MHz Core: Handles real-time control tasks efficiently.
- Wide Voltage Range: Supports 3.3V and 5V logic, simplifying system integration.
- Robust Peripheral Set: Includes PWM, WDT, and brown-out reset for reliable operation.
Automotive Body Electronics
With a 125°C temperature rating and robust peripherals, this MCU is ideal for engine control units, window lifts, and lighting modules.
Industrial Control Systems
The 24MHz core and 64KB flash enable complex control algorithms for PLCs, motor drives, and power inverters.
Smart Sensors
Its multiple timers and PWM channels allow precise sensor conditioning and data acquisition in factory automation.
Power Management
Operates from 2.95V to 5.5V, making it suitable for battery chargers and power supply controllers.
HVAC Systems
Reliable operation in harsh environments with brown-out detection ensures safe control of compressors and fans.
Medical Equipment
High reliability and wide temperature range support diagnostic devices and patient monitoring systems.
- Q: What is the maximum operating frequency?
- A: The STM8S207S8T3C runs at up to 24MHz.
- Q: What is the supply voltage range?
- A: It operates from 2.95V to 5.5V, suitable for 3.3V and 5V systems.
- Q: How much flash memory does it have?
- A: It provides 64KB of flash program memory.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 125°C, ideal for automotive and industrial.
- Q: What package is this MCU available in?
- A: It comes in a 44-LQFP package.
