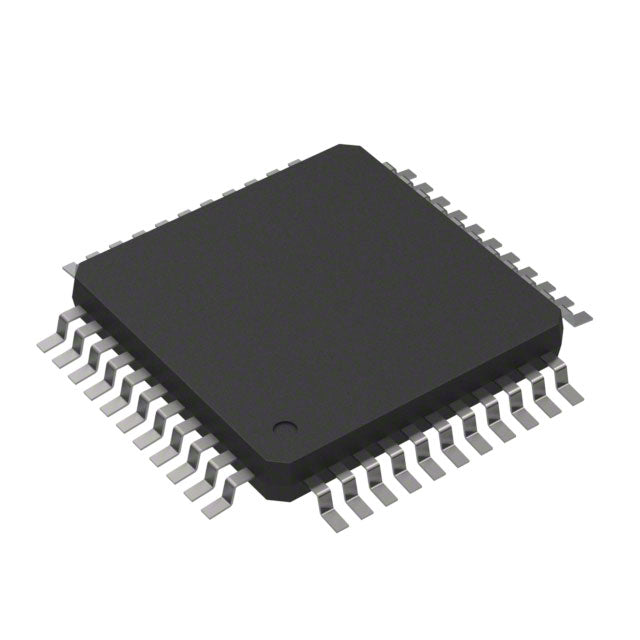

STMicroelectronics STM8S207S8T6CTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.11 | $5.11 |
| 15+ | $3.36 | $50.40 |
| 25+ | $3.29 | $82.25 |
| 50+ | $3.10 | $155.00 |
| 100+ | $2.74 | $274.00 |
| N+ | $0.55 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1.5K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 9x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 44-LQFP |
| ROHS |  |
The STM8S207S8T6CTR is a high-performance 8-bit microcontroller from STMicroelectronics, featuring the STM8 core at 24MHz. It offers 64KB of flash and 6KB of RAM in a 44-pin LQFP package. With a supply range of 2.95V to 5.5V, it is designed for industrial and automotive environments. The device includes PWM, brown-out detection, and watchdog timer, providing a robust solution for control applications.
- 24MHz STM8 core – Delivers high throughput for 8-bit MCUs, handling complex control loops.
- 5.5V supply capability – Directly compatible with automotive and industrial 5V logic.
- 64KB flash – Ample storage for large firmware with bootloaders and data tables.
- 44-pin LQFP – Offers a good balance of I/O count and package size for mid-range applications.
Industrial Motor Drives
The 24MHz core and PWM outputs enable precise control of AC induction or BLDC motors in pumps and fans.
Automotive Aftermarket ECUs
With 5.5V operation and 64KB flash, it can handle engine management for retrofitted vehicles.
Power Supply Control
Its fast ADC and PWM allow implementation of digital power converters with high efficiency.
HVAC Controllers
The robust I/O and wide temperature range support building climate control systems.
Industrial Robotics
Multiple timers and communication interfaces coordinate multi-axis motion in small robotic arms.
Smart Grid Equipment
Reliable operation and brown-out detection make it suitable for power line monitoring units.
- Q: What is the supply voltage range?
- A: It operates from 2.95V to 5.5V.
- Q: What core does it use?
- A: It uses the STM8 core running at 24MHz.
- Q: How much flash memory is available?
- A: It has 64KB of flash and 6KB of RAM.
- Q: What package is it in?
- A: It comes in a 44-pin LQFP package.
- Q: Does it support PWM?
- A: Yes, it includes PWM, brown-out detect, POR, and WDT.
