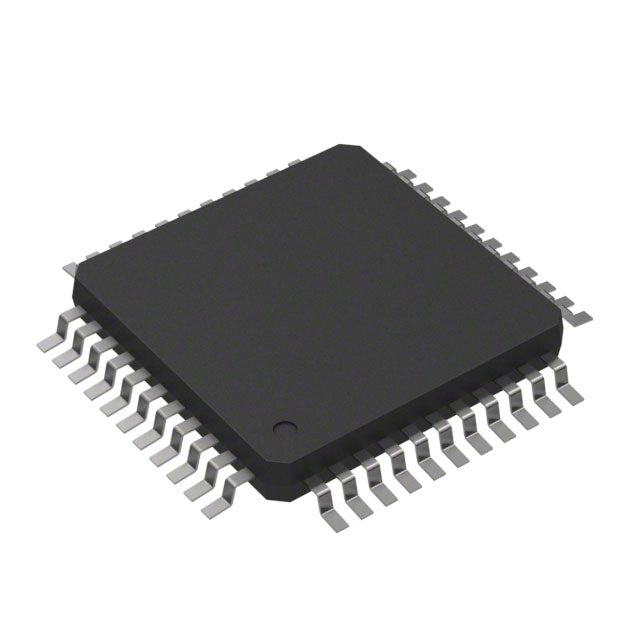

STMicroelectronics STM8S207SBT6C
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.47 | $5.47 |
| 15+ | $3.60 | $54.00 |
| 25+ | $3.52 | $88.00 |
| 50+ | $3.32 | $166.00 |
| 100+ | $2.93 | $293.00 |
| N+ | $0.59 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Tray | |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 9x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 44-LQFP |
| ROHS |  |
The STMicroelectronics STM8S207SBT6C is a high-performance 8-bit MCU that offers a compelling balance of cost, performance, and features. Operating at up to 24MHz, it provides ample processing power for a wide range of applications. With 128KB Flash and a 2.95V to 5.5V supply range, it is a flexible and robust choice for industrial and consumer products.
- Wide Voltage Range: Operates from 2.95V to 5.5V, simplifying power supply design and ensuring 5V logic compatibility.
- Large Memory Footprint: 128KB Flash is generous for an 8-bit MCU, supporting complex applications.
- Cost-Effective Performance: 24MHz speed delivers strong performance for its price point.
- Mature Ecosystem: Backed by ST's extensive development tools and documentation.
Industrial Automation I/O Modules
The 5V tolerant I/O and robust design make it ideal for interfacing with industrial sensors and actuators in PLCs.
Consumer Appliances
Its cost-effectiveness and rich feature set are well-suited for washing machines, dishwashers, and microwave ovens.
Automotive Aftermarket Electronics
The wide voltage range and 24MHz speed allow for use in car alarm systems, window lift controllers, and dashboard clusters.
HVAC Control Systems
It can manage temperature sensors, fan motors, and user interfaces in thermostats and building management systems.
E-Bike and Scooter Controllers
The 128KB Flash provides enough space for motor control algorithms and user interface logic in light electric vehicles.
Smart Meters and Energy Monitoring
Its low power consumption and multiple communication interfaces make it suitable for utility metering applications.
- Q: What is the core of the STM8S207SBT6C?
- A: It is based on the STM8 8-bit core from STMicroelectronics.
- Q: What is the maximum clock speed?
- A: It operates at up to 24 MHz.
- Q: What is the supply voltage range?
- A: It supports a wide range from 2.95V to 5.5V, making it compatible with 5V systems.
- Q: How much Flash memory does it have?
- A: It includes 128KB of Flash program memory.
- Q: What package is available?
- A: It is available in a 44-pin LQFP package.
