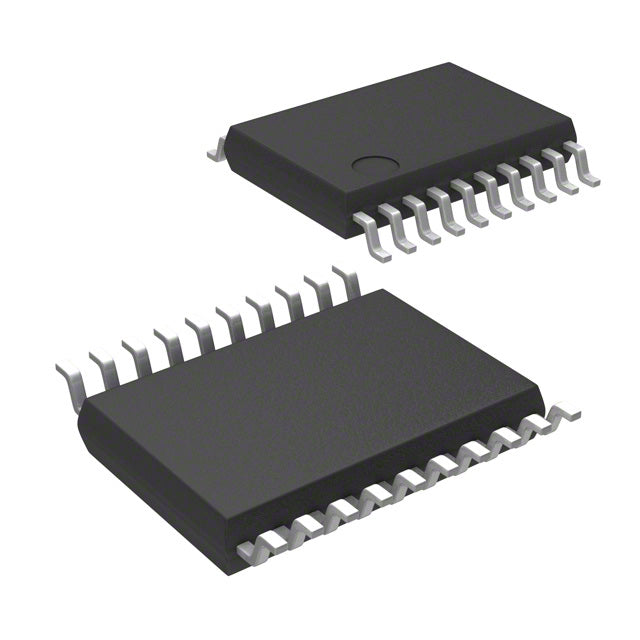

STMicroelectronics STM8S903F3P6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.45 | $2.45 |
| 15+ | $1.61 | $24.15 |
| 25+ | $1.58 | $39.50 |
| 50+ | $1.49 | $74.50 |
| 100+ | $1.31 | $131.00 |
| N+ | $0.26 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM8S |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | STM8 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 640 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 5x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The STM8S903F3P6TR from STMicroelectronics is a robust 8-bit microcontroller. It offers 16MHz performance with 8KB flash and 1KB RAM in a 20-TSSOP package. Operating from 2.95V to 5.5V, it includes PWM, brown-out detection, and WDT, making it ideal for automotive and industrial applications.
- Wide Voltage Range: 2.95V to 5.5V supports both 3.3V and 5V systems.
- High Reliability: BOD, POR, and WDT ensure stable operation in harsh conditions.
- Compact Size: 20-TSSOP package fits space-limited designs.
- Cost-Effective: 8-bit core with 8KB flash offers low-cost solution for basic control.
Automotive Body Control
The 5.5V operation and 16MHz core handle window lift and mirror control in vehicles.
Industrial Sensors
With PWM and WDT, it processes analog signals in pressure or temperature transmitters.
Consumer Electronics
Its wide voltage range and small TSSOP package suit remote controls and small appliances.
Power Tools
Robust features and 8KB flash support battery management in cordless drills.
HVAC Systems
Reliable operation from -40°C to 85°C makes it suitable for thermostat control.
Lighting Ballasts
PWM outputs enable efficient dimming in fluorescent or LED drivers.
- Q: What core does the STM8S903F3P6TR use?
- A: It uses an STM8 core running at up to 16 MHz.
- Q: What is the supply voltage range?
- A: It operates from 2.95V to 5.5V.
- Q: How much flash and RAM does it have?
- A: It has 8KB flash and 1KB RAM.
- Q: What package is available?
- A: It comes in a 20-TSSOP package.
- Q: What is the temperature range?
- A: It is rated for -40°C to 85°C.
