Sanken Electric USA Inc. STR-W6052S
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,874.90 | Dhs. 355,874.90 |
| 15+ | Dhs. 344,636.75 | Dhs. 5,169,551.25 |
| 25+ | Dhs. 337,144.64 | Dhs. 8,428,616.00 |
| 50+ | Dhs. 318,414.39 | Dhs. 15,920,719.50 |
| 100+ | Dhs. 280,953.87 | Dhs. 28,095,387.00 |
| N+ | Dhs. 56,190.77 | Price Inquiry |
Request Quote / Inquiry

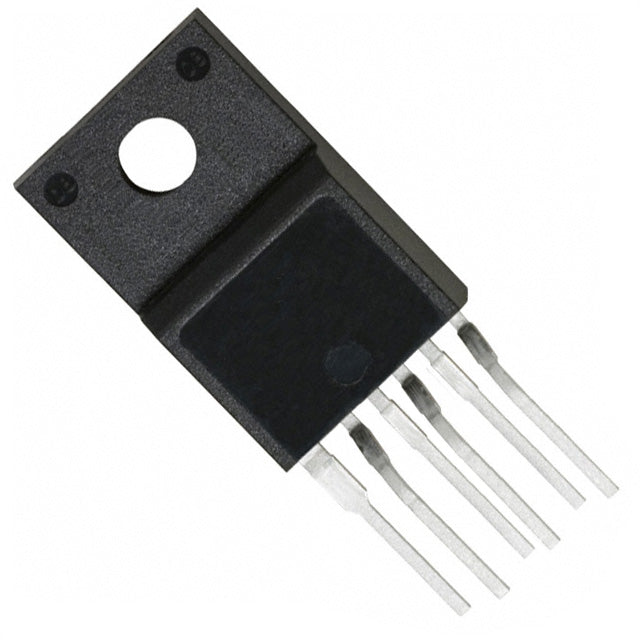

STR-W6052S - High-Performance Offline Switching Regulator IC
The Sanken STR-W6052S is a high-efficiency 650V offline switching regulator IC designed for flyback topology power supplies up to 60W. Part of the proven STR-W6000S series, this integrated power IC combines a high-voltage MOSFET with advanced control circuitry to deliver reliable, cost-effective AC/DC conversion for industrial, consumer, and telecommunications applications.
Key Features & Benefits
- 650V High-Voltage MOSFET - Robust breakdown voltage for universal AC input designs
- 60W Power Capability - Ideal for mid-power offline converters and adapters
- 60-74kHz Switching Frequency - Optimized for compact transformer design and low EMI
- Comprehensive Protection - Built-in current limiting, overload, over-temperature, and over-voltage protection
- Wide Operating Range - 8.1V to 32V supply voltage, -20°C to 115°C operating temperature
- 71% Maximum Duty Cycle - Excellent for high-efficiency designs
- 15.3V Start-Up Voltage - Low start-up threshold for fast power-on
- TO-220F-6L Package - Industry-standard through-hole mounting for reliable assembly
Typical Applications
- AC/DC power adapters and chargers
- Auxiliary power supplies for industrial equipment
- Home appliance control circuits
- LED lighting drivers
- Telecom and networking equipment power modules
- Consumer electronics power supplies
Why Choose Authorized Distribution?
When you source the STR-W6052S from our authorized channel, you receive:
- ✓ 100% Genuine Sanken Components - Factory-sealed, traceable stock
- ✓ Full Manufacturer Warranty - Backed by Sanken Electric's quality guarantee
- ✓ Complete Documentation - Datasheets, application notes, and reference designs
- ✓ Long Lifecycle Support - Stable supply for production programs
- ✓ Technical Support - Design-in assistance and engineering resources
- ✓ Global Logistics - Fast, reliable shipping through authorized channels
Design Resources & Documentation
Access comprehensive technical documentation including datasheets, application notes, reference designs, and SPICE models to accelerate your design cycle and ensure optimal performance.
Order with Confidence
Stock availability, competitive pricing, and fast global shipping. Contact our technical sales team for volume pricing, custom packaging options, or design-in support for your next project.
| Product attributes | Property Value |
| Manufacturer | Sanken Electric USA Inc. |
| Product Series | STR-W6000S |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 15.3 V |
| Voltage - Supply (Vcc/Vdd) | 8.1V ~ 32V |
| Duty Cycle | 71% |
| Frequency - Switching | 60kHz ~ 74kHz |
| Power (Watts) | 60 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -20°C ~ 115°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-6L |
| ROHS |  |
