Sanken Electric USA Inc. STR-W6053S
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,874.90 | Dhs. 355,874.90 |
| 15+ | Dhs. 344,636.75 | Dhs. 5,169,551.25 |
| 25+ | Dhs. 337,144.64 | Dhs. 8,428,616.00 |
| 50+ | Dhs. 318,414.39 | Dhs. 15,920,719.50 |
| 100+ | Dhs. 280,953.87 | Dhs. 28,095,387.00 |
| N+ | Dhs. 56,190.77 | Price Inquiry |
Request Quote / Inquiry
STR-W6053S - 90W Offline Flyback Switching Regulator IC
The STR-W6053S from Sanken Electric is a high-performance 90W offline flyback switching regulator IC designed for AC/DC power supply applications. This integrated power IC features a 650V breakdown voltage, 60-74kHz switching frequency, and comprehensive protection circuitry including over-current, over-voltage, over-temperature, and over-load protection.
Key Features:
- 90W power handling capability with flyback topology
- 650V high-voltage breakdown rating for robust performance
- Wide supply voltage range: 8.1V to 32V (Vcc/Vdd)
- Adjustable switching frequency: 60kHz to 74kHz
- 71% maximum duty cycle for efficient operation
- Comprehensive fault protection: current limiting, over-load, over-temperature, over-voltage
- Isolated output design for safety and flexibility
- 15.3V start-up voltage
- Extended operating temperature range: -20°C to 115°C (TA)

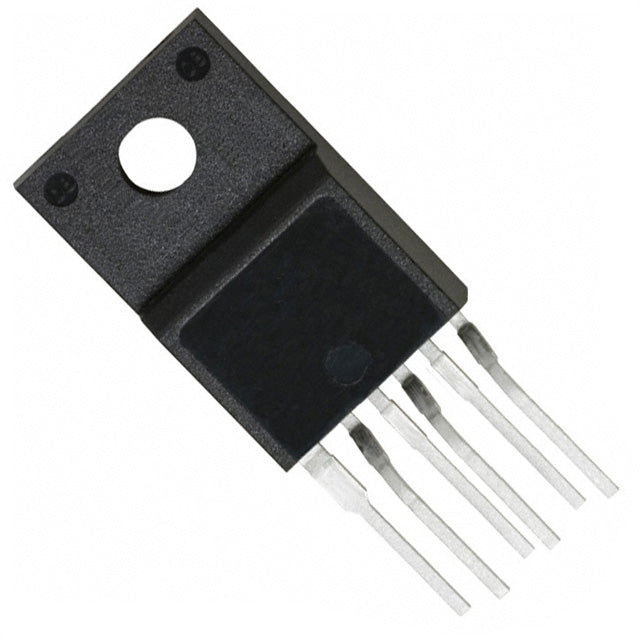

- Industry-standard TO-220F-6L package with formed leads
Applications: Ideal for consumer electronics, industrial power supplies, LED drivers, battery chargers, and auxiliary power modules requiring reliable, efficient AC/DC conversion with comprehensive protection features.
Quality Assurance: Authorized distributor stock with full manufacturer documentation, traceability, and RoHS compliance. Long lifecycle availability to support your design programs and mitigate obsolescence risk.
| Product attributes | Property Value |
| Manufacturer | Sanken Electric USA Inc. |
| Product Series | STR-W6000S |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 15.3 V |
| Voltage - Supply (Vcc/Vdd) | 8.1V ~ 32V |
| Duty Cycle | 71% |
| Frequency - Switching | 60kHz ~ 74kHz |
| Power (Watts) | 90 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -20°C ~ 115°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-6L |
| ROHS |  |
STR-W6053S.pdf
