Sanken Electric USA Inc. STR-W6735
Regular price
Dhs. 355,874.90
Regular price
Dhs. 374,605.16
Sale price
Dhs. 355,874.90
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,874.90 | Dhs. 355,874.90 |
| 15+ | Dhs. 344,636.75 | Dhs. 5,169,551.25 |
| 25+ | Dhs. 337,144.64 | Dhs. 8,428,616.00 |
| 50+ | Dhs. 318,414.39 | Dhs. 15,920,719.50 |
| 100+ | Dhs. 280,953.87 | Dhs. 28,095,387.00 |
| N+ | Dhs. 56,190.77 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

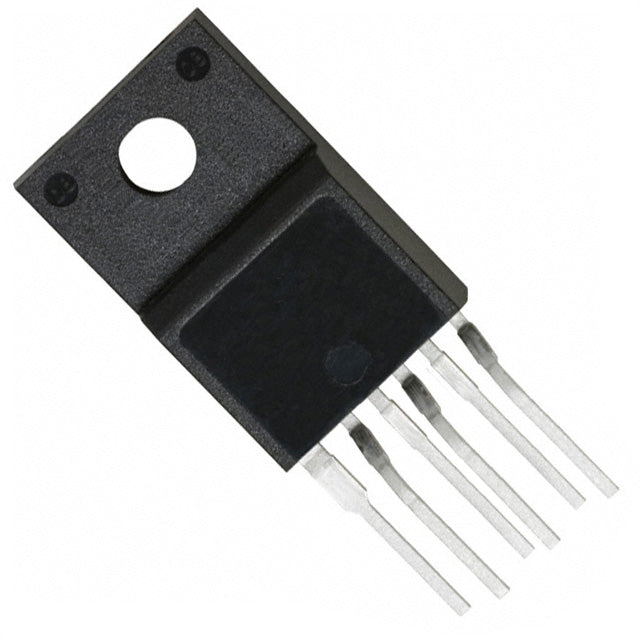

STR-W6735 Offline Flyback Switching Regulator IC
The STR-W6735 from Sanken Electric is a high-performance 160W offline flyback switching regulator designed for AC/DC power supply applications in industrial, telecommunications, and consumer electronics. This integrated power management IC features built-in 500V MOSFET, comprehensive fault protection, and soft-start control for reliable, efficient power conversion.
Key Features & Benefits
- 160W Power Handling – Robust output capability for demanding applications
- 500V Breakdown Voltage – High-voltage tolerance for universal AC input designs
- Integrated Flyback Topology – Simplified circuit design with isolated output
- 19kHz to 25kHz Switching Frequency – Optimized for efficiency and EMI performance
- Comprehensive Protection – Current limiting, overload, and overvoltage safeguards
- Soft Start Control – Reduces inrush current and extends component life
- Wide Operating Range – -20°C to +115°C ambient temperature rating
- TO-220F-6L Package – Industry-standard through-hole mounting for easy integration
Typical Applications
- AC/DC power supplies for industrial equipment
- Telecommunications infrastructure power modules
- Consumer electronics adapters and chargers
- Auxiliary power supplies in automotive and aerospace systems
- LED driver circuits requiring isolated output
Why Choose Our STR-W6735?
As an authorized distributor, we guarantee 100% authentic Sanken Electric components with full manufacturer documentation, traceability, and warranty support. Every STR-W6735 ships with:
- ✓ Full manufacturer datasheet and application notes
- ✓ Certificate of conformance and traceability documentation
- ✓ Long lifecycle availability to support your product programs
- ✓ Global shipping through authorized channels
- ✓ Technical design-in support and reference designs
Need design assistance or volume pricing? Contact our technical team for application support, reference designs, and custom solutions tailored to your project requirements.
| Product attributes | Property Value |
| Manufacturer | Sanken Electric USA Inc. |
| Product Series | STR-W6700 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 500V |
| Topology | Flyback |
| Voltage - Start Up | 18.2 V |
| Voltage - Supply (Vcc/Vdd) | 9.7V ~ 35V |
| Duty Cycle | - |
| Frequency - Switching | 19kHz ~ 25kHz |
| Power (Watts) | 160 W |
| Fault Protection | Current Limiting, Over Load, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -20°C ~ 115°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-6L |
| ROHS |  |
STR-W6735.pdf
×
