Sanken Electric USA Inc. STR-W6750F
Regular price
Dhs. 7.38
Regular price
Dhs. 7.75
Sale price
Dhs. 7.38
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.38 | Dhs. 7.38 |
| 15+ | Dhs. 7.13 | Dhs. 106.95 |
| 25+ | Dhs. 6.98 | Dhs. 174.50 |
| 50+ | Dhs. 6.59 | Dhs. 329.50 |
| 100+ | Dhs. 5.81 | Dhs. 581.00 |
| N+ | Dhs. 1.16 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

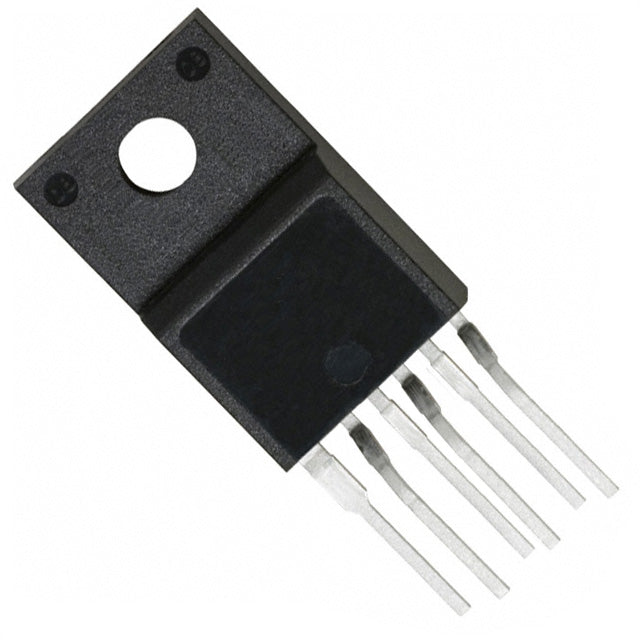

STR-W6750F Offline Switching Regulator IC
The STR-W6750F from Sanken Electric is a high-performance offline switching regulator IC designed for isolated AC/DC flyback power supplies. Featuring a 650V breakdown voltage and integrated MOSFET switch, this TO-220F-6L packaged IC delivers reliable power conversion with comprehensive protection features including current limiting, overload, and overvoltage protection.
Key Features:
- 650V high-voltage breakdown capability
- Integrated internal switching MOSFET
- 19kHz to 25kHz switching frequency range
- Flyback topology for isolated output
- Soft-start control for reduced inrush current
- Wide operating temperature range: -20°C to 115°C
- Supply voltage range: 9.7V to 35V
- Comprehensive fault protection (current limiting, overload, overvoltage)
- RoHS compliant
Applications: Ideal for consumer electronics, industrial power supplies, LED drivers, and any application requiring reliable isolated AC/DC conversion with robust protection features.
| Product attributes | Property Value |
| Manufacturer | Sanken Electric USA Inc. |
| Product Series | STR-W6700 |
| Packaging | Bulk | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 18.2 V |
| Voltage - Supply (Vcc/Vdd) | 9.7V ~ 35V |
| Duty Cycle | - |
| Frequency - Switching | 19kHz ~ 25kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -20°C ~ 115°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-6L |
| ROHS |  |
STR-W6750F.pdf
×
