Sanken Electric USA Inc. STR-W6765N
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 9.03 | Dhs. 9.03 |
| 15+ | Dhs. 8.76 | Dhs. 131.40 |
| 25+ | Dhs. 8.57 | Dhs. 214.25 |
| 50+ | Dhs. 8.09 | Dhs. 404.50 |
| 100+ | Dhs. 7.14 | Dhs. 714.00 |
| N+ | Dhs. 1.43 | Price Inquiry |
Request Quote / Inquiry

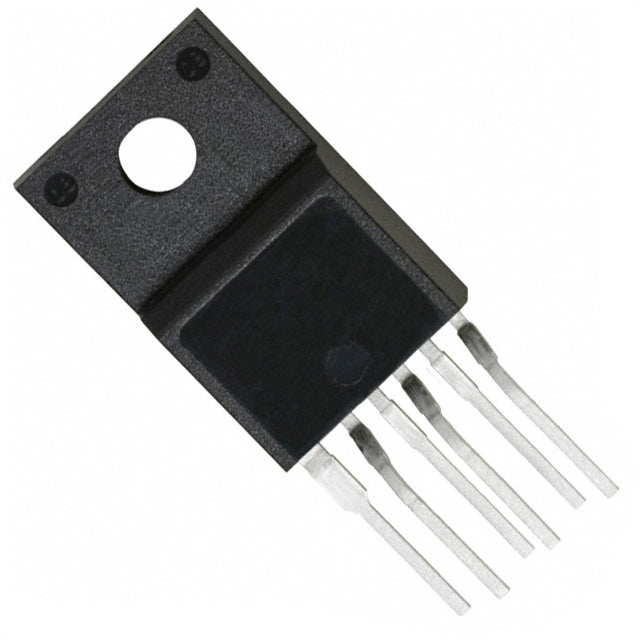

STR-W6765N Offline Flyback Switching Regulator IC
The STR-W6765N from Sanken Electric is a high-performance offline flyback switching regulator IC designed for isolated AC-DC power supply applications. This integrated power IC features an internal 800V MOSFET switch, comprehensive fault protection, and soft-start control for reliable, efficient power conversion in consumer electronics, industrial equipment, and telecommunications systems.
Key Features & Benefits
- Integrated 800V High-Voltage MOSFET – Reduces component count and simplifies design
- Flyback Topology – Ideal for isolated power supplies with wide input voltage range
- 19kHz to 25kHz Switching Frequency – Optimized for efficiency and EMI performance
- Comprehensive Protection – Current limiting, over-load, and over-voltage protection ensure safe operation
- Soft Start Control – Minimizes inrush current and stress on components
- Wide Operating Temperature Range – -20°C to 115°C (TA) for demanding environments
- RoHS Compliant – Meets environmental standards for lead-free manufacturing
Applications
- AC-DC power adapters and chargers
- Standby power supplies
- Auxiliary power for industrial controls
- Home appliances and consumer electronics
- LED lighting drivers
- Telecommunications equipment
All specifications are subject to change without notice. Please refer to the manufacturer's datasheet for the most current information.
Related Products & Resources
Looking for more AC-DC converter solutions? Explore our complete selection of AC DC Converters, Offline Switchers for a wide range of power management ICs suitable for industrial, automotive, and consumer applications.
Visit HQICKEY to discover our full catalog of high-reliability semiconductors, power management solutions, and electronic components for demanding applications.
Stay informed about the latest product releases, technical insights, and industry trends by visiting our News & Technical Blog.
| Product attributes | Property Value |
| Manufacturer | Sanken Electric USA Inc. |
| Product Series | STR-W6700 |
| Packaging | Bulk | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Topology | Flyback |
| Voltage - Start Up | 18.2 V |
| Voltage - Supply (Vcc/Vdd) | 9.7V ~ 35V |
| Duty Cycle | - |
| Frequency - Switching | 19kHz ~ 25kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -20°C ~ 115°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-6L |
| ROHS |  |
