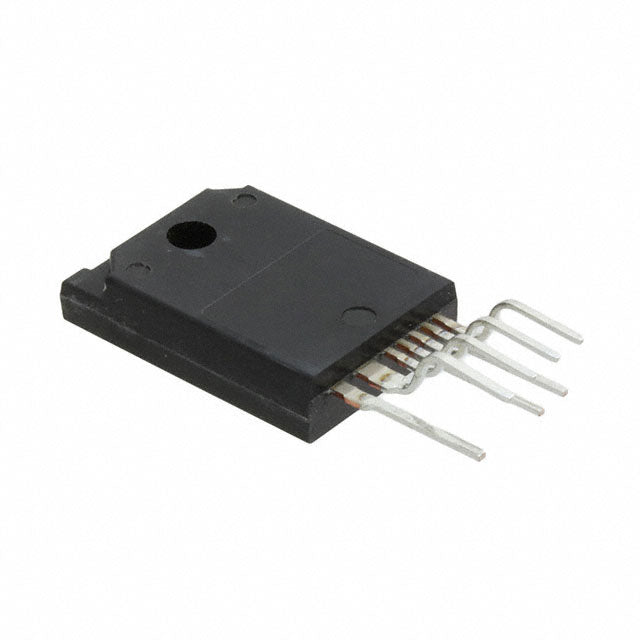

Sanken Electric USA Inc. STR-X6729
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Sanken Electric USA Inc. |
| Product Series | STR-X6700 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 450V |
| Topology | Flyback |
| Voltage - Start Up | 18.2 V |
| Voltage - Supply (Vcc/Vdd) | 9.7V ~ 35V |
| Duty Cycle | - |
| Frequency - Switching | 19kHz ~ 25kHz |
| Power (Watts) | 360 W |
| Fault Protection | Current Limiting, Over Load, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -20°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-7 Full Pack, Formed Leads |
| Supplier Device Package | TO-3P |
| ROHS |  |
STR-X6729 Offline Switching Power Supply IC
The STR-X6729 from Sanken Electric is a high-performance 360W flyback switching regulator designed for AC/DC offline power conversion applications. This integrated power IC combines a high-voltage MOSFET with a PWM controller, delivering reliable performance in industrial, telecommunications, and consumer electronics power supplies.
Key Features
- 360W Power Handling – Robust output capability for demanding applications
- 450V Breakdown Voltage – High-voltage tolerance for universal AC input designs
- 19-25kHz Switching Frequency – Optimized for efficiency and EMI performance
- Comprehensive Protection – Built-in current limiting, overload, and overvoltage protection
- Soft Start Control – Reduces inrush current and extends component life
- Wide Operating Range – -20°C to 125°C ambient temperature rating
- TO-3P Package – Industry-standard through-hole mounting for reliable thermal management
Applications
Ideal for AC/DC power supplies in industrial automation, telecommunications equipment, consumer appliances, LED lighting drivers, and auxiliary power modules requiring isolated flyback topology with integrated switching.
Authorized Distributor – Full Traceability
We supply 100% authentic Sanken components with complete manufacturer documentation, certificates of conformance, and lot traceability. All units ship from authorized distributor stock with global logistics support and design-in technical assistance.
STR-X6729.pdf
