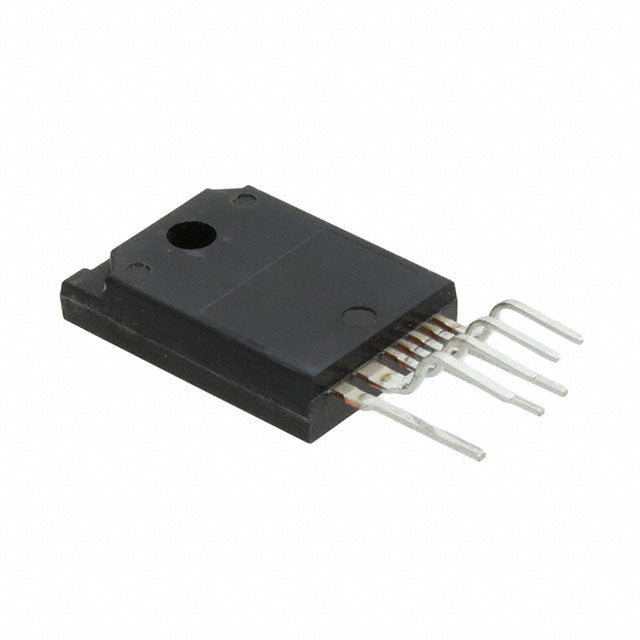

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
STR-X6750B
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,894.28 AED | Dhs. 355,894.28 AED |
| 15+ | Dhs. 344,655.52 AED | Dhs. 5,169,832.80 AED |
| 25+ | Dhs. 337,163.00 AED | Dhs. 8,429,075.00 AED |
| 50+ | Dhs. 318,431.73 AED | Dhs. 15,921,586.50 AED |
| 100+ | Dhs. 280,969.17 AED | Dhs. 28,096,917.00 AED |
| N+ | Dhs. 56,193.83 AED | Price Inquiry |
Couldn't load pickup availability
STR-X6750B Offline Flyback Switching Regulator IC
The STR-X6750B from Sanken Electric is a high-performance offline flyback switching regulator IC designed for reliable AC/DC power conversion in industrial, consumer, and telecommunications applications. This integrated power IC combines a 650V high-voltage MOSFET with a PWM controller, delivering robust performance with comprehensive fault protection.
Key Features & Benefits
- 650V Breakdown Voltage – High-voltage capability for universal AC input designs
- Integrated Flyback Topology – Simplified design with internal switching element
- 19kHz to 25kHz Switching Frequency – Optimized for efficiency and EMI performance
- Comprehensive Protection – Built-in current limiting, over-voltage, and over-load protection
- Soft Start Control – Reduces inrush current and improves system reliability
- Wide Operating Range – 9.7V to 35V supply voltage, -20°C to 125°C operation
- TO-3P Package – Industry-standard through-hole mounting for easy integration
Applications
Ideal for AC/DC power supplies, battery chargers, auxiliary power modules, industrial control systems, and telecommunications equipment requiring isolated output and reliable performance.
Authorized Distributor – Full Traceability
We supply 100% authentic STR-X6750B ICs directly from authorized channels with complete manufacturer documentation, traceability, and warranty support. Every component is backed by our authenticity guarantee and long lifecycle availability commitment.
Need design support or reference schematics? Contact our technical team for application notes, design-in assistance, and volume pricing.
| Product attributes | Property Value |
| Manufacturer | Sanken Electric USA Inc. |
| Product Series | STR-X6700 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 18.2 V |
| Voltage - Supply (Vcc/Vdd) | 9.7V ~ 35V |
| Duty Cycle | - |
| Frequency - Switching | 19kHz ~ 25kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -20°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-7 Full Pack, Formed Leads |
| Supplier Device Package | TO-3P |
| ROHS |  |
