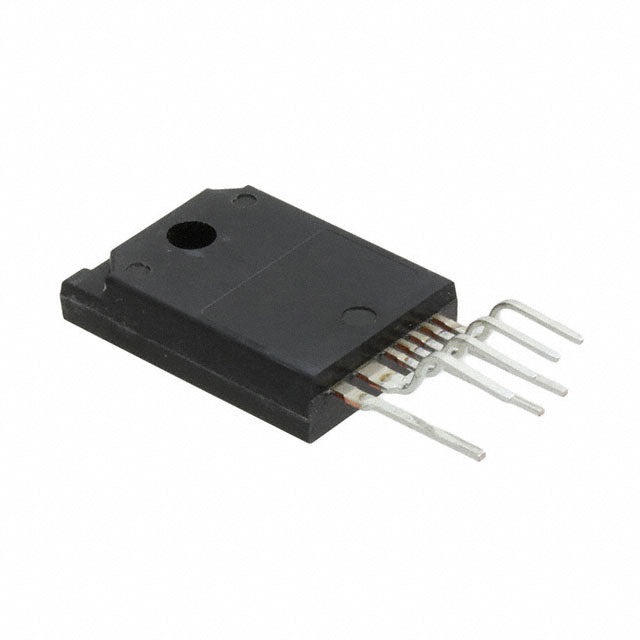

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
STR-X6757N
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,894.28 AED | Dhs. 355,894.28 AED |
| 15+ | Dhs. 344,655.52 AED | Dhs. 5,169,832.80 AED |
| 25+ | Dhs. 337,163.00 AED | Dhs. 8,429,075.00 AED |
| 50+ | Dhs. 318,431.73 AED | Dhs. 15,921,586.50 AED |
| 100+ | Dhs. 280,969.17 AED | Dhs. 28,096,917.00 AED |
| N+ | Dhs. 56,193.83 AED | Price Inquiry |
Couldn't load pickup availability
STR-X6757N Offline Flyback Switching Regulator IC
The STR-X6757N from Sanken Electric is a high-performance offline flyback switching regulator IC designed for isolated AC/DC power supply applications. This integrated power controller features a built-in 500V high-voltage MOSFET and comprehensive protection circuitry, making it ideal for industrial, consumer electronics, and telecommunications power systems.
Key Features & Benefits
- Integrated 500V High-Voltage Switch - Reduces external component count and simplifies design
- Wide Operating Voltage Range - 9.7V to 35V supply voltage with 18.2V startup
- Variable Switching Frequency - 19kHz to 25kHz for optimized efficiency and EMI performance
- Comprehensive Fault Protection - Built-in current limiting, overload, and overvoltage protection
- Soft Start Control - Minimizes inrush current and stress on components
- Wide Operating Temperature - -20°C to 125°C for demanding environments
- RoHS Compliant - Environmentally friendly and regulation-compliant
Typical Applications
- AC/DC offline flyback power supplies
- Industrial control systems and automation equipment
- Consumer electronics adapters and chargers
- Telecommunications and networking equipment
- Home appliances and white goods
Why Choose STR-X6757N?
The STR-X6757N combines high integration, robust protection features, and proven reliability in a compact TO-3P package. Its flyback topology and isolated output make it perfect for applications requiring galvanic isolation between input and output, while the integrated MOSFET and control circuitry reduce BOM costs and board space.
As an authorized distributor, we provide 100% authentic Sanken components with full manufacturer documentation, traceability, and long lifecycle support for your critical designs.
| Product attributes | Property Value |
| Manufacturer | Sanken Electric USA Inc. |
| Product Series | STR-X6700 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 500V |
| Topology | Flyback |
| Voltage - Start Up | 18.2 V |
| Voltage - Supply (Vcc/Vdd) | 9.7V ~ 35V |
| Duty Cycle | - |
| Frequency - Switching | 19kHz ~ 25kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -20°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-7 Full Pack, Formed Leads |
| Supplier Device Package | TO-3P |
| ROHS |  |
STR-X6757N.pdf
