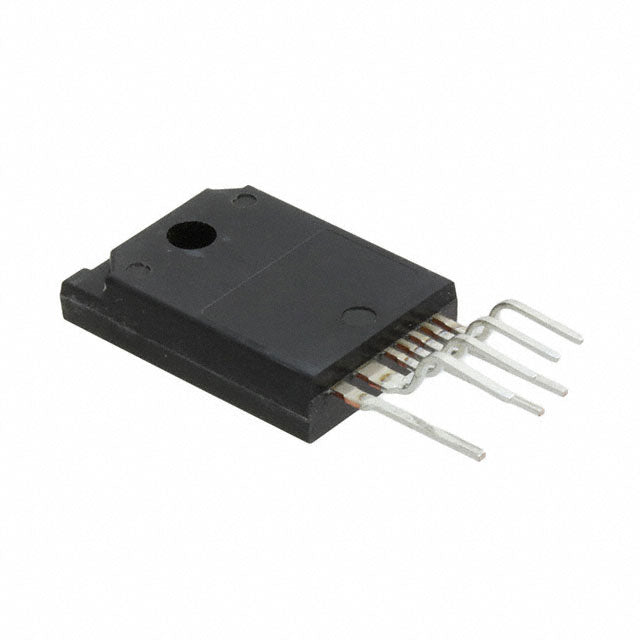

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
STR-X6759B
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,894.28 AED | Dhs. 355,894.28 AED |
| 15+ | Dhs. 344,655.52 AED | Dhs. 5,169,832.80 AED |
| 25+ | Dhs. 337,163.00 AED | Dhs. 8,429,075.00 AED |
| 50+ | Dhs. 318,431.73 AED | Dhs. 15,921,586.50 AED |
| 100+ | Dhs. 280,969.17 AED | Dhs. 28,096,917.00 AED |
| N+ | Dhs. 56,193.83 AED | Price Inquiry |
Couldn't load pickup availability
STR-X6759B Offline Flyback Switching Regulator IC
The Sanken STR-X6759B is a high-performance AC/DC offline flyback switching regulator IC designed for isolated power supply applications. This integrated power controller features built-in MOSFET switching, comprehensive fault protection, and soft-start control, making it ideal for aerospace, industrial, and telecommunications power management systems.
Key Features & Benefits
- 500V Breakdown Voltage – High-voltage capability for robust isolation and reliability
- Integrated Flyback Topology – Simplified design with built-in switching elements
- 19kHz to 25kHz Switching Frequency – Optimized for efficiency and EMI performance
- Comprehensive Protection – Current limiting, over-load, and over-voltage safeguards
- Soft Start Control – Reduces inrush current and extends component lifespan
- Wide Operating Range – 9.7V to 35V supply voltage, -20°C to 125°C operation
- TO-3P Package – Through-hole mounting for reliable mechanical and thermal performance
Applications
Ideal for AC/DC power supplies in industrial equipment, telecommunications infrastructure, consumer electronics, and embedded systems requiring isolated, regulated power conversion with high reliability and long lifecycle support.
Authorized Distributor Guarantee
We supply 100% authentic Sanken components with full manufacturer documentation, traceability certificates, and warranty support. All units are sourced through authorized distribution channels to ensure authenticity and long-term availability for your critical designs.
Need technical support or reference designs? Contact our applications engineering team for design-in assistance, evaluation samples, and lifecycle planning for your power supply projects.
| Product attributes | Property Value |
| Manufacturer | Sanken Electric USA Inc. |
| Product Series | STR-X6700 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 500V |
| Topology | Flyback |
| Voltage - Start Up | 18.2 V |
| Voltage - Supply (Vcc/Vdd) | 9.7V ~ 35V |
| Duty Cycle | - |
| Frequency - Switching | 19kHz ~ 25kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -20°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-7 Full Pack, Formed Leads |
| Supplier Device Package | TO-3P |
| ROHS |  |
