Sanken Electric USA Inc. STR-Y6735
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,870.06 | Dhs. 355,870.06 |
| 15+ | Dhs. 344,632.06 | Dhs. 5,169,480.90 |
| 25+ | Dhs. 337,140.05 | Dhs. 8,428,501.25 |
| 50+ | Dhs. 318,410.05 | Dhs. 15,920,502.50 |
| 100+ | Dhs. 280,950.05 | Dhs. 28,095,005.00 |
| N+ | Dhs. 56,190.01 | Price Inquiry |
Request Quote / Inquiry
STR-Y6735 Flyback Switching Regulator IC - 120W Isolated AC/DC Offline Controller
The STR-Y6735 from Sanken Electric is a high-performance flyback switching regulator IC designed for isolated AC/DC offline power supply applications up to 120W. This integrated controller features built-in switching elements and comprehensive protection circuitry, making it ideal for aerospace, industrial, telecommunications, and automotive power management systems.
Key Features & Benefits
- 120W Power Handling: Robust design for medium-power isolated flyback topologies
- 500V Breakdown Voltage: High-voltage capability for universal AC input applications
- Integrated Switching Elements: Reduces external component count and simplifies design
- Wide Supply Range: 9.4V to 35V operating voltage with 15.1V start-up threshold
- Comprehensive Protection: Current limiting, overload, over-temperature, and over-voltage safeguards
- 18.4kHz to 24.4kHz Switching Frequency: Optimized for efficiency and EMI performance
- Extended Temperature Range: -20°C to +115°C ambient operation for harsh environments

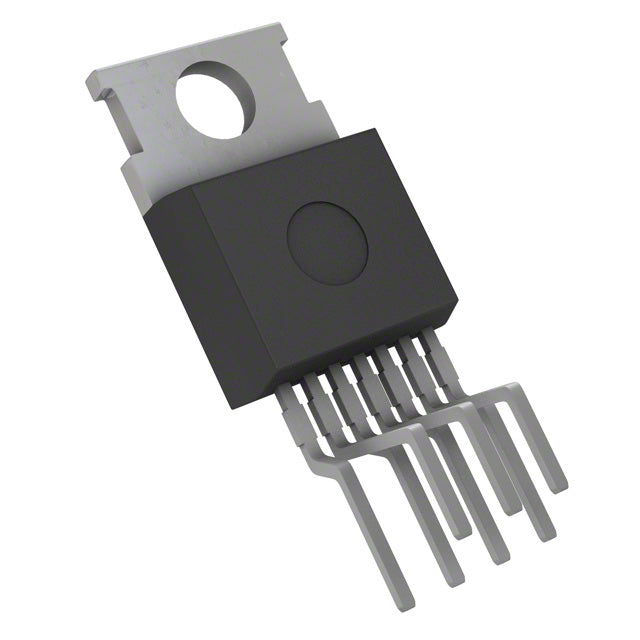

- TO-220F-7 Package: Industry-standard through-hole mounting for reliable assembly
Applications
- Industrial power supplies and automation equipment
- Telecommunications infrastructure and networking gear
- Aerospace and avionics power management
- Automotive auxiliary power systems
- LED lighting drivers and control systems
- Battery chargers and energy storage systems
Why Choose Authorized Distribution?
We are an authorized distributor of Sanken Electric components, ensuring you receive genuine, factory-fresh ICs with full manufacturer documentation, traceability, and warranty support. Our commitment to long lifecycle availability helps protect your designs against obsolescence and ensures continuity for critical programs.
Design Support & Resources
Access comprehensive technical documentation, reference designs, and application notes to accelerate your development. Our team provides design-in support to help you optimize performance, efficiency, and reliability in your power supply applications.
Global Shipping Available | Authorized Distributor Stock | Full Manufacturer Documentation | Long Lifecycle Support
| Product attributes | Property Value |
| Manufacturer | Sanken Electric USA Inc. |
| Product Series | STR-Y6700 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 500V |
| Topology | Flyback |
| Voltage - Start Up | 15.1 V |
| Voltage - Supply (Vcc/Vdd) | 9.4V ~ 35V |
| Duty Cycle | - |
| Frequency - Switching | 18.4kHz ~ 24.4kHz |
| Power (Watts) | 120 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -20°C ~ 115°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-7 Formed Leads |
| Supplier Device Package | TO-220F-7 |
| ROHS |  |
STR-Y6735.pdf
