Sanken Electric USA Inc. STR-Y6754
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,870.06 | Dhs. 355,870.06 |
| 15+ | Dhs. 344,632.06 | Dhs. 5,169,480.90 |
| 25+ | Dhs. 337,140.05 | Dhs. 8,428,501.25 |
| 50+ | Dhs. 318,410.05 | Dhs. 15,920,502.50 |
| 100+ | Dhs. 280,950.05 | Dhs. 28,095,005.00 |
| N+ | Dhs. 56,190.01 | Price Inquiry |
Request Quote / Inquiry

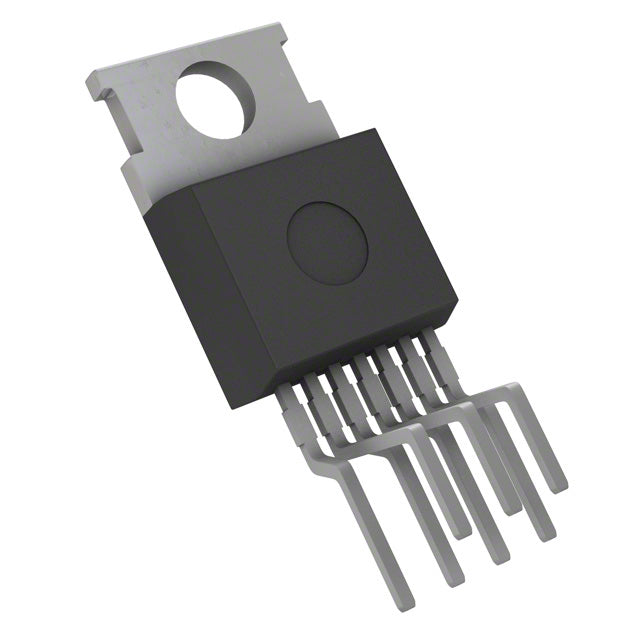

STR-Y6754 Flyback Switching Regulator IC
The Sanken STR-Y6754 is a high-performance isolated flyback switching regulator IC designed for AC-DC offline power supply applications up to 120W. Part of the proven STR-Y6700 series, this integrated power IC combines a 650V high-voltage MOSFET with advanced control circuitry in a compact TO-220F-7 package.
Key Features & Benefits
- Integrated 650V Power MOSFET – Reduces component count and board space
- 120W Power Capability – Ideal for consumer electronics, industrial controls, and LED lighting
- Wide Operating Range – 9.4V to 35V supply voltage with 15.1V startup
- Comprehensive Protection – Current limiting, overload, over-temperature, and over-voltage safeguards
- Optimized Switching Frequency – 18.4kHz to 24.4kHz for reduced EMI and improved efficiency
- Extended Temperature Range – -20°C to 115°C ambient operation for demanding environments
Applications
This switching regulator IC is well-suited for isolated flyback topologies in AC-DC power supplies, battery chargers, LED drivers, auxiliary power modules, and industrial control systems requiring reliable, compact power conversion.
Authorized Distributor
We supply genuine Sanken Electric components with full manufacturer documentation, traceability, and warranty support. All parts are sourced through authorized channels to ensure authenticity and long lifecycle availability.
| Product attributes | Property Value |
| Manufacturer | Sanken Electric USA Inc. |
| Product Series | STR-Y6700 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 15.1 V |
| Voltage - Supply (Vcc/Vdd) | 9.4V ~ 35V |
| Duty Cycle | - |
| Frequency - Switching | 18.4kHz ~ 24.4kHz |
| Power (Watts) | 120 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -20°C ~ 115°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-7 Formed Leads |
| Supplier Device Package | TO-220F-7 |
| ROHS |  |
STR-Y6754.pdf
