Sanken Electric USA Inc. STR-Y6763
Regular price
Dhs. 355,870.06
Regular price
Dhs. 374,600.06
Sale price
Dhs. 355,870.06
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,870.06 | Dhs. 355,870.06 |
| 15+ | Dhs. 344,632.06 | Dhs. 5,169,480.90 |
| 25+ | Dhs. 337,140.05 | Dhs. 8,428,501.25 |
| 50+ | Dhs. 318,410.05 | Dhs. 15,920,502.50 |
| 100+ | Dhs. 280,950.05 | Dhs. 28,095,005.00 |
| N+ | Dhs. 56,190.01 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

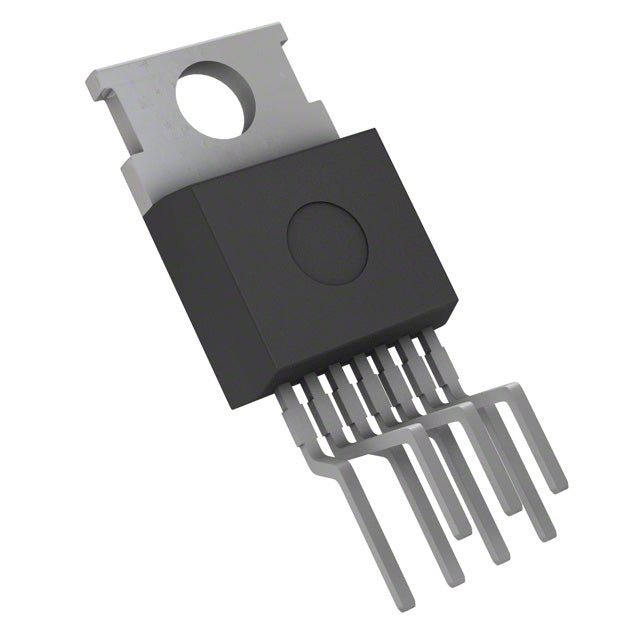

STR-Y6763 Offline Switching Regulator IC
The STR-Y6763 from Sanken Electric is a high-performance 80W flyback switching regulator IC designed for isolated AC-DC power supply applications. Featuring an 800V breakdown voltage and integrated switching frequency control (18.4kHz to 24.4kHz), this TO-220F-7 packaged IC delivers reliable power conversion with comprehensive protection features including current limiting, over-load, over-temperature, and over-voltage safeguards.
Key Features:
- 80W power handling capability with isolated flyback topology
- Wide supply voltage range: 9.4V to 35V (Vcc/Vdd)
- 800V breakdown voltage for robust performance
- Integrated switching frequency control (18.4kHz ~ 24.4kHz)
- Comprehensive fault protection: current limiting, over-load, over-temperature, over-voltage
- Through-hole TO-220F-7 package for easy integration
- Operating temperature range: -20°C to 115°C (TA)
- RoHS compliant
Applications: Ideal for AC-DC power supplies in industrial equipment, telecommunications infrastructure, consumer electronics, and automotive systems requiring reliable isolated power conversion with long lifecycle support.
| Product attributes | Property Value |
| Manufacturer | Sanken Electric USA Inc. |
| Product Series | STR-Y6700 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Topology | Flyback |
| Voltage - Start Up | 15.1 V |
| Voltage - Supply (Vcc/Vdd) | 9.4V ~ 35V |
| Duty Cycle | - |
| Frequency - Switching | 18.4kHz ~ 24.4kHz |
| Power (Watts) | 80 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -20°C ~ 115°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-7 Formed Leads |
| Supplier Device Package | TO-220F-7 |
| ROHS |  |
STR-Y6763.pdf
×
