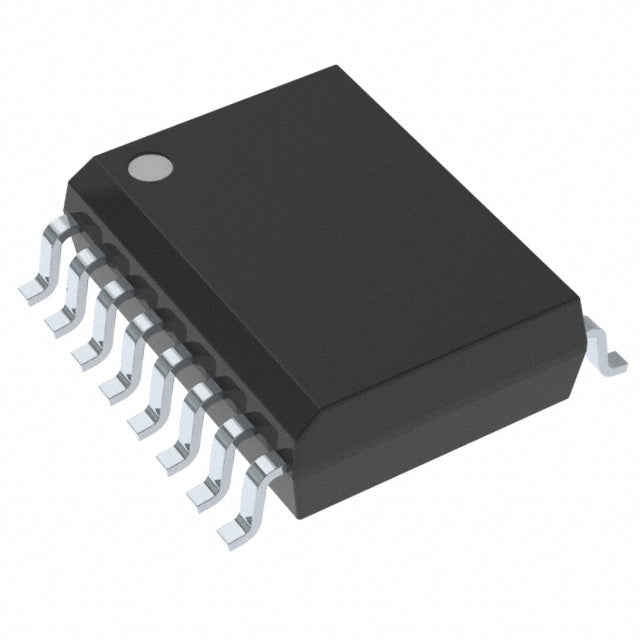

Analog Devices Inc. SW06GSZ
Regular price
$9.60
Regular price
$10.11
Sale price
$9.60
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.60 | $9.60 |
| 15+ | $9.30 | $139.50 |
| 25+ | $9.10 | $227.50 |
| 50+ | $8.59 | $429.50 |
| 100+ | $7.58 | $758.00 |
| N+ | $1.52 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 150Ohm |
| Channel-to-Channel Matching (ΔRon) | 30Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 700ns, 500ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 5.5pF |
| Current - Leakage (IS(off)) (Max) | 60nA |
| Crosstalk | -70dB @ 500kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC (0.295", 7.50mm Width) |
| ROHS |  |
SW06GSZ.pdf
×
