Microchip Technology SY89231UMG-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | Precision Edge® |
| Packaging | | |
| Type | Clock Divider |
| PLL | No |
| Input | CML, LVDS, PECL |
| Output | LVDS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | Yes/Yes |
| Frequency - Max | 3.2GHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.375V ~ 2.625V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

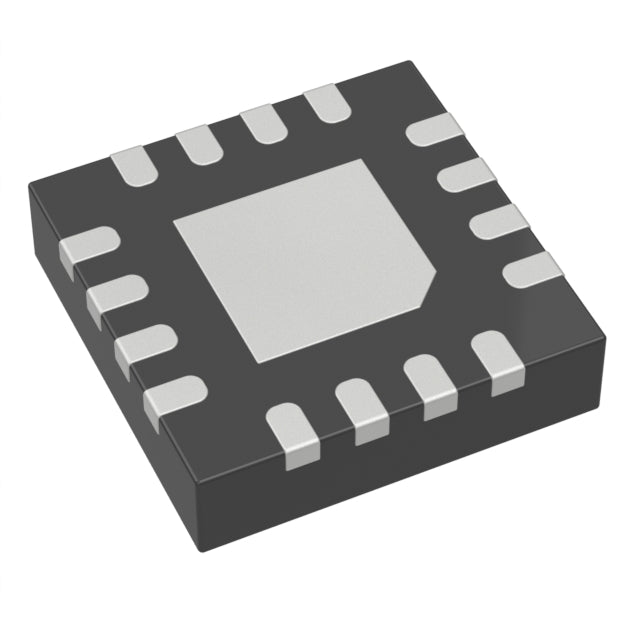

| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| ROHS |  |
The Microchip SY89231UMG-TR is a high-speed Clock Divider designed for demanding applications. It accepts differential CML, LVDS, or PECL inputs and provides LVDS output, supporting frequencies up to 3.2GHz. Housed in a 16-VFQFN package, it is ideal for networking, telecom, and test equipment requiring precise frequency division.
- Ultra-High Frequency Support: Handles input clocks up to 3.2GHz, suitable for the fastest serial links.
- Flexible Input Interface: Accepts CML, LVDS, and PECL, simplifying integration with various logic families.
- Low-Jitter LVDS Output: Provides a clean, differential output for high-integrity signal distribution.
- Industrial Temperature Range: Operates from -40°C to 85°C for reliable performance in harsh conditions.
High-Speed Clock Division for Optical Transceivers
The SY89231UMG-TR can divide high-frequency clocks (up to 3.2GHz) in optical modules, enabling lower-speed logic to process data from high-speed SerDes interfaces.
Networking and Telecom Timing
Use this divider to generate lower-frequency clocks from high-speed references in routers, switches, and base stations, ensuring proper timing for various ICs.
Test and Measurement Equipment
In high-end test equipment, this divider allows for precise frequency scaling of high-frequency signals for analysis and measurement.
Data Center Interconnects
Divide high-speed clocks in data center switches and servers to provide timing for FPGAs, ASICs, and other logic devices.
Broadband Communication Systems
Generate sub-harmonic clocks for mixers and other RF components in broadband communication systems, leveraging the high input frequency capability.
- Q: What type of device is the SY89231UMG-TR?
- A: The SY89231UMG-TR is a Clock Divider from Microchip Technology.
- Q: Does it include a PLL?
- A: No, it does not include a PLL.
- Q: What are the input and output types?
- A: It accepts CML, LVDS, or PECL inputs and provides LVDS output.
- Q: How many circuits and what is the maximum frequency?
- A: It has 1 circuit and supports a maximum frequency of 3.2GHz.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What is the package type?
- A: It comes in a 16-VFQFN Exposed Pad package.
