Infineon Technologies TC264DA40F200WBBKXUMA1
Regular price
$76.10
Regular price
$19.02
Sale price
$76.10
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $76.10 | $76.10 |
| 15+ | $17.50 | $262.50 |
| 25+ | $17.12 | $428.00 |
| 50+ | $16.17 | $808.50 |
| 100+ | $14.27 | $1,427.00 |
| N+ | $2.85 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | AURIX™ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Core Processor | TriCore™ |
| Core Size | 32-Bit Dual-Core |
| Speed | 200MHz |
| Connectivity | ASC, CANbus, Ethernet, FlexRay, HSSL, I2C, LINbus, MSC, PSI5, QSPI, SENT |
| Peripherals | DMA, WDT |
| Number of I/O | 88 |
| Program Memory Size | 2.5MB (2.5M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 96K x 8 |
| RAM Size | 752K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.3V, 5V |
| Data Converters | A/D 40x12b, 4 x Sigma-Delta |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-LQFP-144-22 |

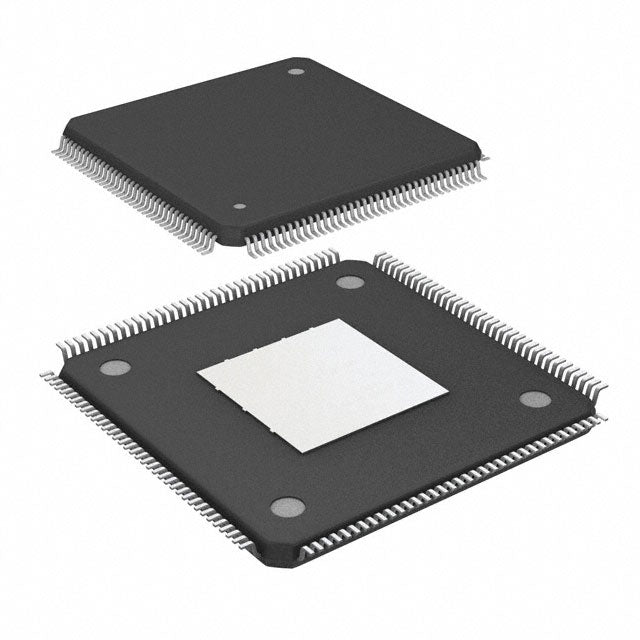

| Package / Case | 144-LQFP Exposed Pad |
| ROHS |  |
The TC264DA40F200WBBKXUMA1 from Infineon is a 32-bit TriCore™ MCU running at 200MHz. It offers 2.5MB flash and 752KB RAM in a 144-LQFP package. With DMA and WDT, it supports 3.3V and 5V supplies, operating from -40°C to 125°C for demanding automotive and industrial applications.
- 200MHz TriCore performance: Combines RISC and DSP features for efficient control.
- Large 752KB RAM: Supports complex data buffers and multitasking.
- Dual voltage support (3.3V/5V): Flexible integration with mixed-voltage systems.
- Extended temperature range: Reliable at 125°C for under-hood use.
Advanced Driver Assistance Systems
200MHz TriCore with 752KB RAM handles sensor fusion algorithms in real time.
Electric Vehicle Inverters
High-speed PWM generation with DMA reduces jitter in motor control loops.
Battery Management Systems
Wide temp range and 5V operation support cell monitoring in harsh environments.
Robotics Controllers
2.5MB flash enables complex motion planning without external memory.
Industrial Drives
TriCore's DSP capabilities accelerate FOC (Field-Oriented Control) calculations.
Smart Grid Equipment
Reliable operation at 125°C suits outdoor power distribution units.
- Q: What core does this MCU use?
- A: Infineon TriCore™ architecture.
- Q: What is the maximum clock speed?
- A: 200MHz.
- Q: What is the operating temperature range?
- A: -40°C to 125°C.
- Q: How much flash memory is available?
- A: 2.5MB.
Base Product Number ：
TC264DA40F200WBBKXUMA1
