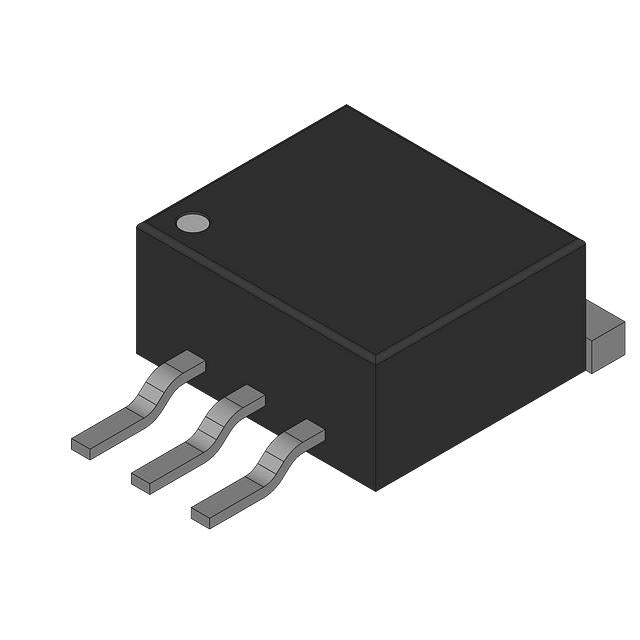

Microchip Technology TC2950-3.0VVBTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.88 | $3.88 |
| 15+ | $0.89 | $13.35 |
| 25+ | $0.87 | $21.75 |
| 50+ | $0.82 | $41.00 |
| 100+ | $0.73 | $73.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 12 mA |
| PSRR | - |
| Control Features | Current Limit, Enable, Error Flag |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK-3 |
The TC2950-3.0VVBTR from Microchip Technology is a low dropout linear regulator offering a fixed 3.0V output. With a maximum output current of 100mA and a low quiescent current of 120 µA, it is optimized for battery-powered and low-power applications. The DPAK-3 package provides a robust and easily solderable solution for various electronic designs.
- Ultra-Low Quiescent Current: The 120 µA ground current significantly reduces power consumption in battery-operated devices.
- Fixed 3.0V Output: Provides a precise, stable voltage rail without the need for external components.
- Low Dropout Voltage: The 0.45V dropout at 100mA allows operation even when the input voltage is close to the output.
- Robust DPAK-3 Package: Offers good thermal and mechanical reliability for industrial and consumer applications.
Battery-Powered Microcontrollers
Provide a stable 3.0V supply for low-power MCUs in portable devices, leveraging the low 120 µA quiescent current to extend battery life.
Memory Backup Circuits
Maintain a constant voltage for SRAM or real-time clocks in backup power systems where low current draw is essential.
Low-Power Sensors
Power analog sensors and signal conditioning circuits that require a clean, regulated 3.0V rail.
Portable Instrumentation
Use in handheld multimeters and other instruments to power precision analog circuitry with minimal noise.
Consumer Electronics
Regulate power for remote controls, toys, and other simple battery-operated devices.
Standby Power Supplies
Provide a low-current, always-on rail for wake-up logic in appliances and smart devices.
- Q: What is the output voltage of the TC2950-3.0VVBTR?
- A: This regulator provides a fixed output voltage of 3.0V.
- Q: What is the maximum output current?
- A: The TC2950 can supply a maximum output current of 100mA.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.45V at a 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is very low at 120 µA, making it suitable for battery-powered applications.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the official datasheet.
- Q: What package is available?
- A: It is available in a DPAK-3 (TO-252) package, which is suitable for moderate power dissipation.
