Microchip Technology TC33025VPE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 8.02 | Dhs. 8.02 |
| 15+ | Dhs. 7.76 | Dhs. 116.40 |
| 25+ | Dhs. 7.59 | Dhs. 189.75 |
| 50+ | Dhs. 7.17 | Dhs. 358.50 |
| 100+ | Dhs. 6.32 | Dhs. 632.00 |
| N+ | Dhs. 1.26 | Price Inquiry |
Request Quote / Inquiry

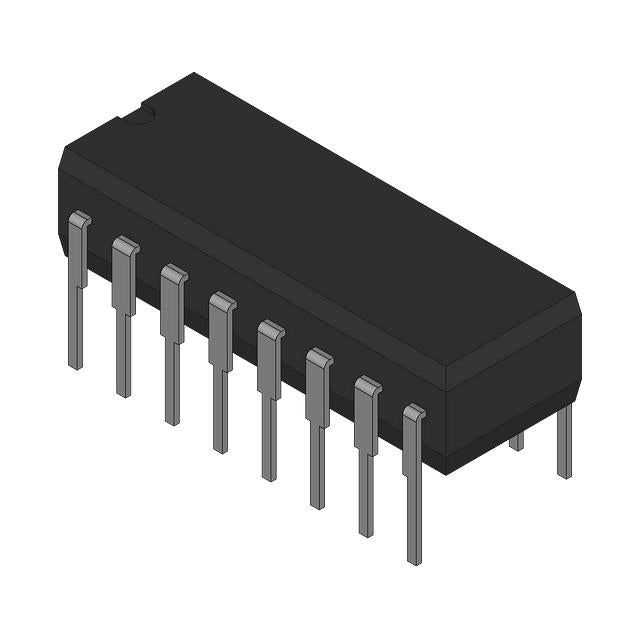

Microchip TC33025VPE High-Speed Push-Pull PWM Controller
The TC33025VPE from Microchip Technology is a high-performance, isolated push-pull PWM controller designed for demanding AC/DC power conversion applications. This advanced IC delivers reliable, efficient power management with integrated protection features for aerospace, automotive, industrial, medical, and telecom systems.
Key Features & Benefits
- High-Speed Switching: 400kHz switching frequency enables compact transformer designs and reduced component size
- Wide Input Range: 0.8V to 30V supply voltage with 9.2V startup threshold for flexible power architectures
- Isolated Push-Pull Topology: Optimized for high-efficiency power conversion with minimal EMI
- Comprehensive Protection: Built-in current limiting, over-voltage protection, and UVLO safeguard your designs
- Advanced Control: Frequency control and soft-start features ensure smooth operation and extended component life
- 90% Duty Cycle: Maximizes power transfer efficiency in your application
- Industrial Temperature Range: -40°C to 80°C operation for harsh environments
- Through-Hole Mounting: 16-DIP package for reliable PCB assembly and easy prototyping
Applications
Ideal for isolated DC/DC converters, offline power supplies, battery chargers, telecom power systems, industrial control equipment, and medical device power management.
Quality & Compliance
As an authorized distributor, we provide genuine Microchip Technology components with full traceability, RoHS/REACH compliance documentation, and manufacturer warranty support. All products ship with datasheets and technical resources for seamless design integration.
Design Support
Our engineering team offers design-in support including application notes, reference designs, and technical consultation to help you successfully integrate the TC33025VPE into your power management solution.
Related Products & Resources
Explore our complete range of AC DC Converters, Offline Switchers for your power management needs. Visit HQICKEY for our full catalog of high-reliability semiconductor components. For technical insights and application notes, check out our Technical Blog.
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Bulk | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Topology | Push-Pull |
| Voltage - Start Up | 9.2 V |
| Voltage - Supply (Vcc/Vdd) | 0.8V ~ 30V |
| Duty Cycle | 90% |
| Frequency - Switching | 400kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Voltage, UVLO |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 80°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.400", 10.16mm) |
| Supplier Device Package | 16-PDIP |
