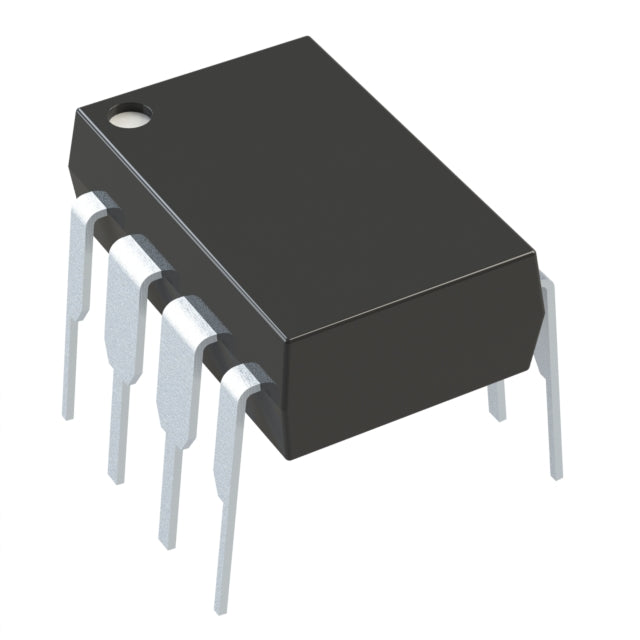

Microchip Technology TC4421AVPA
Regular price
$2.68
Regular price
$2.82
Sale price
$2.68
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.68 | $2.68 |
| 15+ | $2.59 | $38.85 |
| 25+ | $2.54 | $63.50 |
| 50+ | $2.40 | $120.00 |
| 100+ | $2.12 | $212.00 |
| N+ | $0.42 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, MOSFET (N-Channel, P-Channel) |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 10A, 10A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 38ns, 33ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
TC4421AVPA.pdf
×
