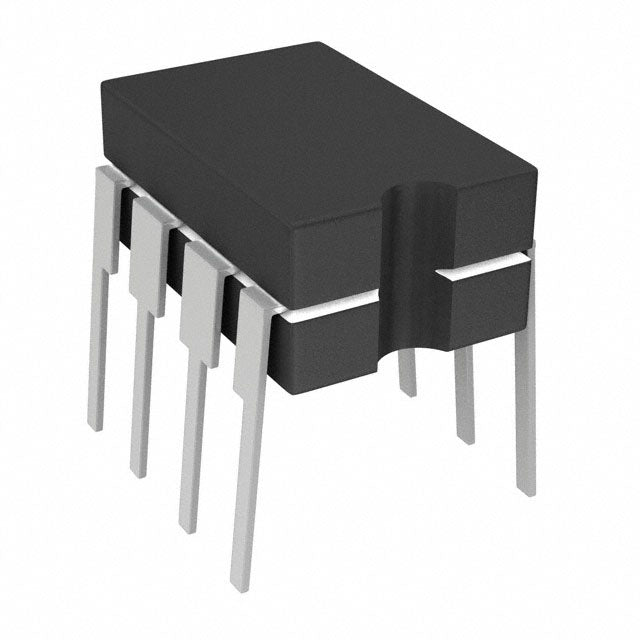

Microchip Technology TC4422MJA
Regular price
$35.05
Regular price
$36.89
Sale price
$35.05
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $35.05 | $35.05 |
| 15+ | $33.94 | $509.10 |
| 25+ | $33.20 | $830.00 |
| 50+ | $31.36 | $1,568.00 |
| 100+ | $27.67 | $2,767.00 |
| N+ | $5.53 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, MOSFET (N-Channel, P-Channel) |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 9A, 9A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 60ns, 60ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP |
| ROHS |  |
TC4422MJA.pdf
×
